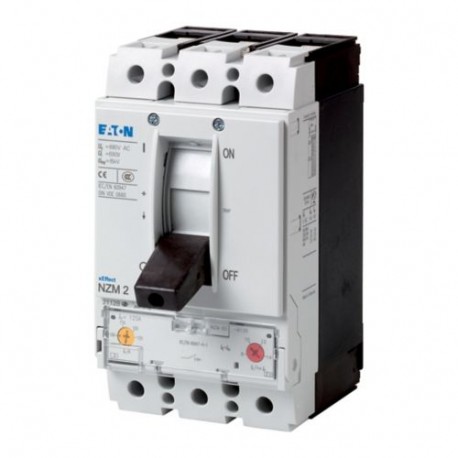

NZMS2-M40 109971 Y7-109971 EATON ELECTRIC NZM Auto Int., 3P, Iu: 40A
NZMS2-M40
109971
Y7-109971
EATON - MOELLER
1 Pcs.
Automation > Motor protection circuit-breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A high-performance automatic interrupting device, the Eaton Moeller NZMS2-M40 109971 Y7-109971 EATON ELECTRIC NZM Auto Int., 3P, Iu: 40A protects electrical lines, transformers, and motors against destructive overcurrent conditions. Industrial facilities rely on these robust circuit breakers to maintain operational safety and continuity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Overload release current setting (EF002336): 32 A
- Adjustment range undelayed short-circuit release (EF007131): 320 A
- With thermal overload protection (EF006233): No
- Phase failure sensitive (EF007400): Yes
- Switch off technique (EF007007): Thermomagnetic
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 40 A
- Rated operation power at AC-3, 230 V (EF007025): 11 kW
- Rated operation power at AC-3, 400 V (EF001364): 18.5 kW
- Type of electrical connection of main circuit (EF006819): Screw connection
- Type of control element (EF006976): Rocker lever
- Device construction (EF008240): Built-in device fixed built-in technique
- With integrated auxiliary switch (EF001387): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Degree of protection (IP) (EF005474): IP20
