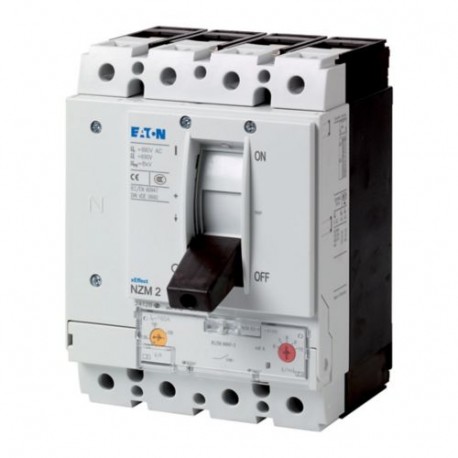

NZMS2-4-A300/200 110206 Y7-110206 EATON ELECTRIC NZMS2-4-A300/200
NZMS2-4-A300/200
110206
Y7-110206
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
NZMS2-4-A300/200 110206 Y7-110206 EATON ELECTRIC NZMS2-4-A300/200 is a molded case circuit breaker designed to interrupt excessive current flows and protect electrical distribution setups. Devices of this category are integrated into switchgear assemblies to ensure reliable circuit protection.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 300 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 240 A
- Adjustment range undelayed short-circuit release (EF007131): 5 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): Yes
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 4
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
Product specifications
Motor drive optional
DIN rail (top hat rail) mounting optional
