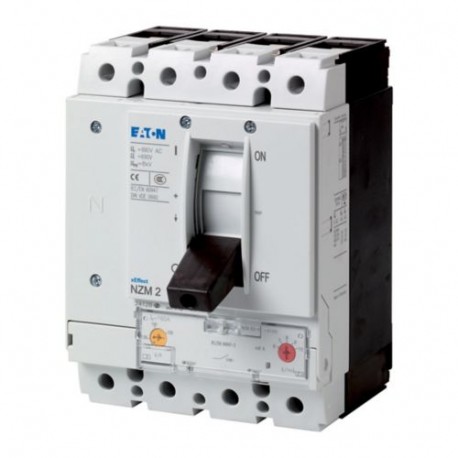

NZMS2-4-A300 110205 Y7-110205 EATON ELECTRIC NZMS2-4-A300
NZMS2-4-A300
110205
Y7-110205
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller NZMS2-4-A300 molded case circuit breaker provides comprehensive current regulation and fault interruption in commercial and industrial electrical grids. These devices are frequently installed in main distribution units to maintain operational safety and continuity.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 300 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 240 A
- Adjustment range undelayed short-circuit release (EF007131): 5 A
- Power loss (EF005387): None W
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): false
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): false
- DIN rail (top hat rail) mounting optional (EF008904): true
- With switched-off indicator (EF007006): false
- With integrated under voltage release (EF001390): false
- Number of poles (EF001391): 4
- Position of connection for main current circuit (EF006671): Front side
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): true
More info
▲General specifications
Product specifications
Protection unit
DIN rail (top hat rail) mounting optional
