NZMS2-4-A200-SVE 113316 Y7-113316 EATON ELECTRIC NZMS2-4-A200-SVE
NZMS2-4-A200-SVE
113316
Y7-113316
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

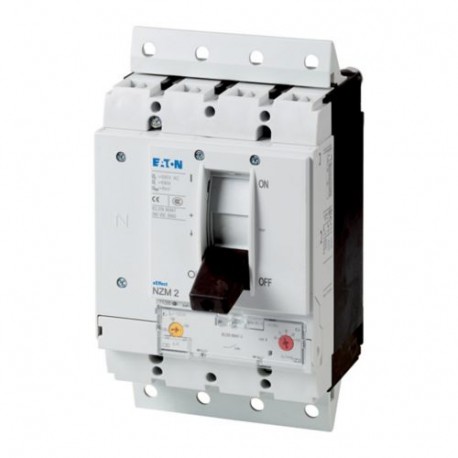

Engineered as a molded case circuit breaker, the Eaton Moeller NZMS2-4-A200-SVE safeguards electrical distribution networks from overload and short-circuit faults. Such components are routinely deployed in electrical panels to safely disconnect circuits during fault conditions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 200 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 160 A
- Adjustment range undelayed short-circuit release (EF007131): 6 A
- Device construction (EF008240): Built-in device plug-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): No
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 4
- Position of connection for main current circuit (EF006671): Back
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
RoHS conform
Product specifications
Protection unit
