NZMS1-4-A25 109949 Y7-109949 EATON ELECTRIC NZM Auto Int., 4P, Iu: 25A
NZMS1-4-A25
109949
Y7-109949
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

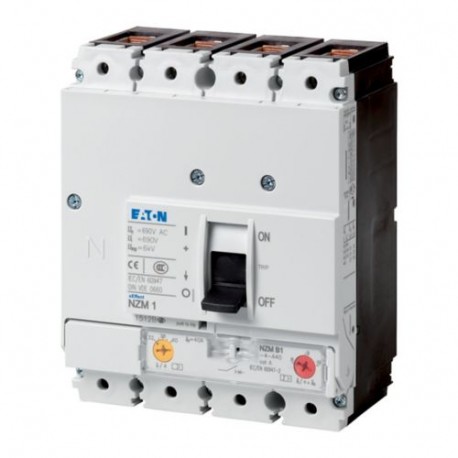

Designed for control panel and machine protection, the Eaton Moeller NZMS1-4-A25 automatic circuit breaker provides dependable thermal-magnetic overcurrent protection across four poles. These versatile devices safely disconnect power during electrical faults to prevent equipment damage and ensure operator safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 25 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 20 A
- Adjustment range undelayed short-circuit release (EF007131): 350 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): Yes
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 4
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
Product specifications
Built-in device fixed built-in technique
