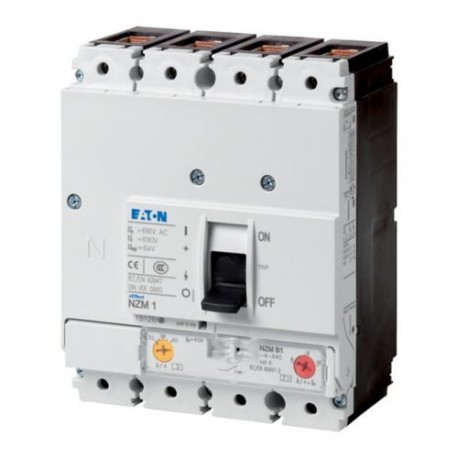

NZMS1-4-A20 109948 Y7-109948 EATON ELECTRIC NZM Auto Int., 4P, Iu: 20A
NZMS1-4-A20
109948
Y7-109948
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Electrical safety in industrial machinery is ensured using components like the NZMS1-4-A20 109948 Y7-109948 EATON ELECTRIC NZM Auto Int., 4P, Iu: 20A by Eaton Moeller. Four-pole circuit breakers isolate electrical anomalies effectively to protect multi-phase power distribution circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 20 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 16 A
- Adjustment range undelayed short-circuit release (EF007131): 350 A
- Power loss (EF005387): None W
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): false
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): false
- DIN rail (top hat rail) mounting optional (EF008904): true
- With switched-off indicator (EF007006): false
- With integrated under voltage release (EF001390): false
- Number of poles (EF001391): 4
- Position of connection for main current circuit (EF006671): Front side
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): true
More info
▲General specifications
Product specifications
DIN rail (top hat rail) mounting optional
4 mm² - 16 mm² (2x) at box terminal
6 mm² - 16 mm² (1x) direct at switch rear-side connection
4 mm² - 16 mm² (2x) direct at switch rear-side connection
6 mm² - 70 mm² (1x) at box terminal
4 mm² - 25 mm² (2x) direct at switch rear-side connection
4 mm² - 25 mm² (2x) at box terminal
