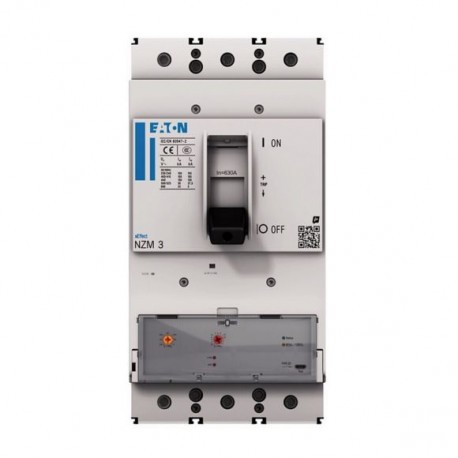

NZMN3-AX250-NA 192484 EATON ELECTRIC Automatic int. NZM3 PXR10, 250A, 3p, screw terminals, UL/CSA
NZMN3-AX250-NA
192484
Y7-192484
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for industrial electrical distribution, the NZMN3-AX250-NA 192484 EATON ELECTRIC automatic circuit breaker provides reliable overcurrent protection and isolation. This 3-pole electronic trip unit device ensures precise fault clearance and equipment safety in commercial and manufacturing facilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 250 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 100 A
- Adjustment range undelayed short-circuit release (EF007131): 2 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): No
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲UL/CSA
IEC
UL (Category Control Number DIVQ)
CE marking
Specially designed for North America
CSA certified
UL 489
UL (File No. E31593)
IEC 60947-2
CSA-C22.2 No. 5-09
CSA (Class No. 1432-01)
UL listed
Motor drive optional
R.m.s. value measurement and “thermal memory”
USB interface for configuration and test function with Power Xpert Protection Manager software
Switches conform to UL/CSA as well as the IEC regulations. IEC switching performance values are contained on the rating plate.
250 A (660-690 V AC-3, making and breaking capacity)
Built-in device fixed built-in technique
R.m.s. value measurement and “thermal memory”
USB interface for configuration and test function with Power Xpert Protection Manager software
Switches conform to UL/CSA as well as the IEC regulations. IEC switching performance values are contained on the rating plate.
System and cable protection
