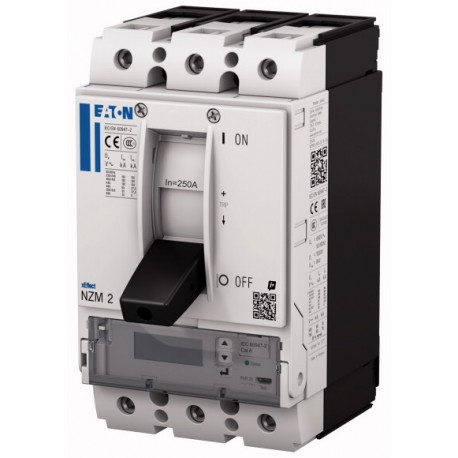

NZMN2-4-PX63/VAR 192205 EATON ELECTRIC NZM2 PXR25 Automatic Int. Class 1, 63A, 4p, Variable, Screw Terminal ..
NZMN2-4-PX63/VAR
192205
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller NZMN2-4-PX63/VAR automatic circuit breaker provides reliable overload and short-circuit protection for complex electrical distribution systems. Industrial installations rely on such four-pole switching devices to isolate faults and protect downstream equipment from damaging overcurrent conditions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Vertical and 90° in all directions: With XFI earth-fault release:
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 25 A
- Adjustment range undelayed short-circuit release (EF007131): 2 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): Yes
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 4
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲Delivery program
Class 1 energy measurement, r.m.s. value measurement, and "thermal memory"
USB interface for configuration and test function with Power Xpert Protection Manager software
Interface module in equipment supplied.
Optionally communication-capable with internal Modbus RTU module or CAM
Technical data
Damp heat, cyclic, to IEC 60068-2-30
With door coupling rotary handle: IP66
Phase isolator and strip terminal: IP00
Tunnel terminal
connection on rear
2 x (6 - 16) mm2
2 x (25 - 70) mm2
2 x (6 - 16) mm2
2 x (25 - 70) mm2
(2x) 8 x 15.5 x 0,8 mm
2 x (0.75 - 1.5) mm2
