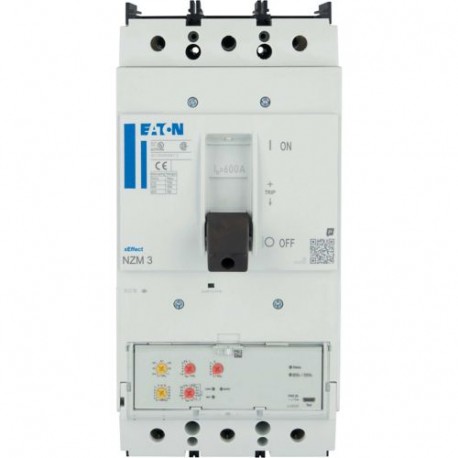

NZMH3-VX600-NA 192535 Y7-192535 EATON ELECTRIC Automatic Int. NZM3 PXR20, 600A, 3p, Screw Terminals, UL/CSA
NZMH3-VX600-NA
192535
Y7-192535
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed to interrupt excessive current flows, an Eaton Moeller automatic circuit breaker protects downstream electrical loads and wiring from overloads and short circuits. Industrial machinery and commercial power distribution networks depend on these devices for automatic trip protection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 600 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 240 A
- Adjustment range undelayed short-circuit release (EF007131): 2 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): No
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
UL 489
UL/CSA
CSA (Class No. 1432-01)
UL (File No. E31593)
Specially designed for North America
CSA (File No. 22086)
CE marking
IEC
UL (Category Control Number DIVQ)
CSA certified
UL listed
CSA-C22.2 No. 5-09
Product specifications
Protection unit
Built-in device fixed built-in technique
Current limiting circuit breaker
