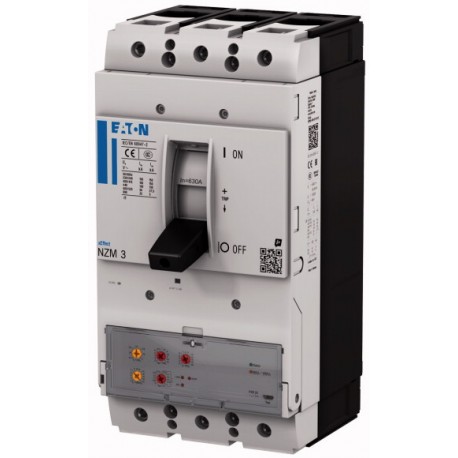

NZMH3-VX400-S1 191344 EATON ELECTRIC Automatic int. NZM3 PXR20, 400A, 3p, screw terminals
NZMH3-VX400-S1
191344
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A robust industrial protection component, the Eaton Moeller NZMH3-VX400-S1 automatic circuit breaker defends electrical lines against overloads and short circuits. These units are typically installed in commercial and industrial distribution boards to manage primary power feeds and branch circuits safely.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 400 A
- Rated voltage (EF003977): 1000 V
- Overload release current setting (EF002336): 160 A
- Adjustment range undelayed short-circuit release (EF007131): 2 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): No
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲Delivery program
Adjustable time delay setting to overcome current peaks tr at 6 x Ir also infinity (without overload releases)
Adjustable delay time tsd
Technical data
2 x (25-120) mm2
2 x (50 - 240) mm2
2 x 16 mm2
2 x (25 - 240) mm2
2 x (50 - 240) mm2
+ 5 x 24 x 1.0
(2 x) 8 x 24 x 1.0 mm
+ 30 x 5 mm
2 x (0.75 - 1.5) mm2
