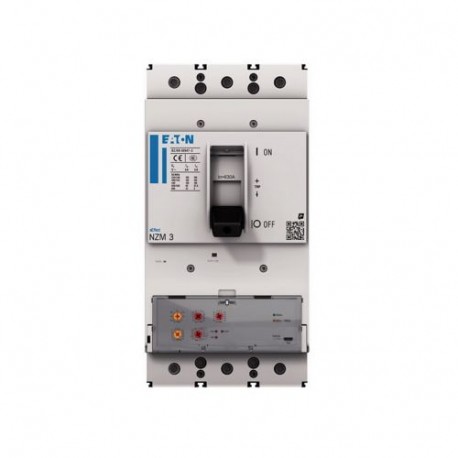

NZMH3-VX400-NA 192534 Y7-192534 EATON ELECTRIC Automatic int. NZM3 PXR20, 400A, 3p, screw terminals, UL/CSA
NZMH3-VX400-NA
192534
Y7-192534
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The NZMH3-VX400-NA 192534 Y7-192534 EATON ELECTRIC Automatic int. NZM3 PXR20, 400A, 3p, screw terminals, UL/CSA functions as an automatic circuit breaker designed to protect electrical distributions against overloads and short circuits. These devices are frequently deployed in industrial control panels to ensure safe electrical isolation and dependable fault clearance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 400 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 160 A
- Adjustment range undelayed short-circuit release (EF007131): 2 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): No
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
CSA (File No. 22086)
CSA (Class No. 1432-01)
UL (Category Control Number DIVQ)
UL 489
CE marking
UL/CSA
Specially designed for North America
IEC
UL (File No. E31593)
CSA certified
IEC 60947-2
UL listed
Product specifications
Protection unit
Built-in device fixed built-in technique
Systems, cable, selectivity and generator protection
