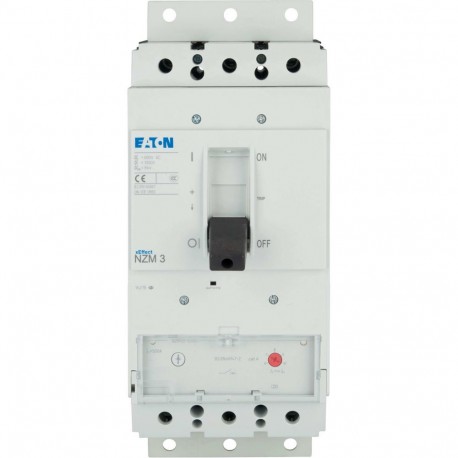

NZMH3-S500-SVE 168919 Y7-168919 EATON ELECTRIC Circuit-breaker, 3p, 500A, withdrawable unit
NZMH3-S500-SVE
168919
Y7-168919
EATON - MOELLER
1 Pcs.
Automation > Motor protection circuit-breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Housed in a withdrawable unit configuration, the NZMH3-S500-SVE 168919 Y7-168919 EATON ELECTRIC Circuit-breaker, 3p, 500A, withdrawable unit delivers heavy-duty magnetic protection. Large industrial switchboards utilize withdrawable breakers to ensure easy extraction and minimal downtime during routine maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Overload release current setting (EF002336): 0 A
- Adjustment range undelayed short-circuit release (EF007131): 6 A
- With thermal overload protection (EF006233): No
- Phase failure sensitive (EF007400): No
- Switch off technique (EF007007): Magnetic
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 500 A
- Rated operation power at AC-3, 230 V (EF007025): 160 kW
- Rated operation power at AC-3, 400 V (EF001364): 250 kW
- Type of control element (EF006976): Rocker lever
- Device construction (EF008240): Built-in device plug-in technique
- With integrated auxiliary switch (EF001387): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Degree of protection (IP) (EF005474): IP20
- Height (EF000040): 215.2 mm
