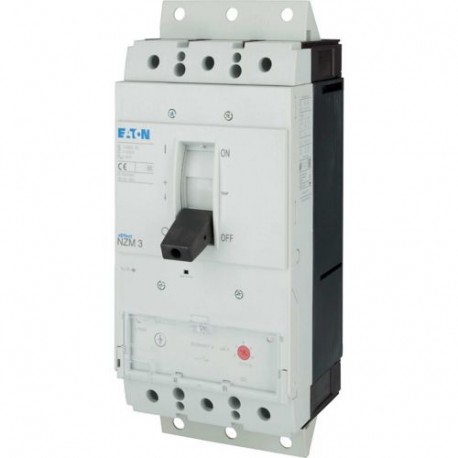

NZMH3-S400-SVE 168918 Y7-168918 EATON ELECTRIC Circuit-breaker, 3p, 400A, withdrawable unit
NZMH3-S400-SVE
168918
Y7-168918
EATON - MOELLER
1 Pcs.
Automation > Motor protection circuit-breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for withdrawable installations, the Eaton Moeller NZMH3-S400-SVE circuit-breaker provides high-capacity current interruption and easy maintenance access in complex switchgear setups. Industrial facilities rely on withdrawable breakers for rapid replacement and minimal downtime. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Overload release current setting (EF002336): 0 A
- Adjustment range undelayed short-circuit release (EF007131): 7 A
- With thermal overload protection (EF006233): No
- Phase failure sensitive (EF007400): No
- Switch off technique (EF007007): Magnetic
- Rated operating voltage (EF001435): 690 V
- Rated operation power at AC-3, 230 V (EF007025): 132 kW
- Rated operation power at AC-3, 400 V (EF001364): 200 kW
- Type of control element (EF006976): Rocker lever
- Device construction (EF008240): Built-in device plug-in technique
- With integrated auxiliary switch (EF001387): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Degree of protection (IP) (EF005474): IP20
- Height (EF000040): 215.2 mm
- Width (EF000008): 140 mm
