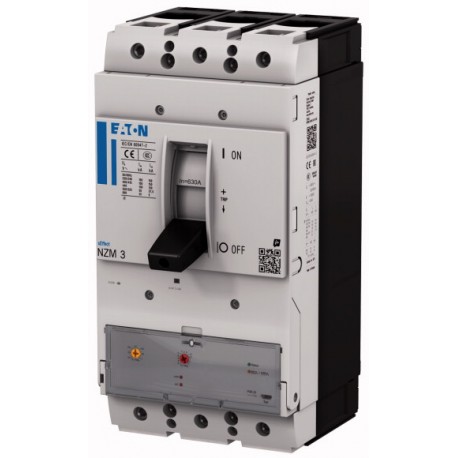

NZMH3-AX250-S1 191562 EATON ELECTRIC Automatic Int. NZM3 PXR10, 250A, 3p, screw terminals
NZMH3-AX250-S1
191562
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An automatic circuit-breaker like the Eaton Moeller NZMH3-AX250-S1 191562 EATON ELECTRIC delivers dependable protection against severe electrical faults and overloads in industrial main distribution panels. These components ensure critical network safety by automatically disconnecting abnormal current loads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 250 A
- Rated voltage (EF003977): 1000 V
- Overload release current setting (EF002336): 100 A
- Adjustment range undelayed short-circuit release (EF007131): 2 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): No
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲Delivery program
R.m.s. value measurement and “thermal memory”
USB interface for configuration and test function with Power Xpert Protection Manager software
Technical data
2 x (25-120) mm2
2 x (50 - 240) mm2
2 x 16 mm2
2 x (25 - 240) mm2
2 x (50 - 240) mm2
+ 5 x 24 x 1.0
(2 x) 8 x 24 x 1.0 mm
+ 30 x 5 mm
2 x (0.75 - 1.5) mm2
