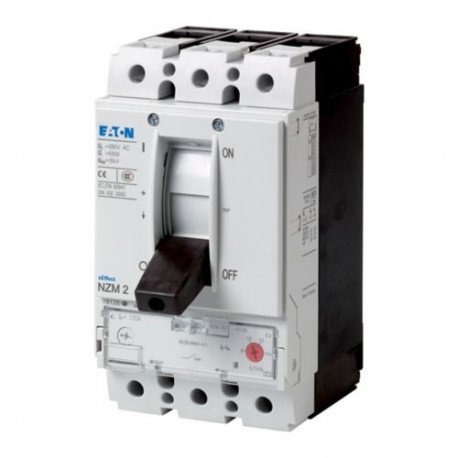

NZMH2-S8-CNA 103047 Y7-103047 EATON ELECTRIC NZMH2-S8-CNA
NZMH2-S8-CNA
103047
Y7-103047
EATON - MOELLER
1 Pcs.
Automation > Motor protection circuit-breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for industrial power distribution, the Eaton Moeller circuit-breaker (NZMH2-S8-CNA) functions as an essential protective device to interrupt abnormal current flows and safeguard electrical circuits from fault conditions. Panel builders use such units to ensure reliable disconnect capabilities and branch protection.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Overload release current setting (EF002336): 0 A
- Adjustment range undelayed short-circuit release (EF007131): 48 A
- With thermal overload protection (EF006233): false
- Phase failure sensitive (EF007400): false
- Switch off technique (EF007007): Magnetic
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 8 A
- Rated operation power at AC-3, 230 V (EF007025): 1.5 kW
- Rated operation power at AC-3, 400 V (EF001364): 3 kW
- Power loss (EF005387): None W
- Type of electrical connection of main circuit (EF006819): Screw connection
- Type of control element (EF006976): Rocker lever
- Device construction (EF008240): Built-in device fixed built-in technique
- With integrated auxiliary switch (EF001387): false
- With integrated under voltage release (EF001390): false
- Number of poles (EF001391): 3
More info
▲General specifications
UL/CSA
UL (File No. E31593)
UL 489
CSA-C22.2 No. 5-09
CSA (File No. 22086)
UL listed
UL (Category Control Number DKPU2)
CSA (Class No. 1432-01)
Specially designed for North America
Product specifications
Built-in device fixed built-in technique
Damp heat, constant, to IEC 60068-2-78
300 V AC (between the auxiliary contacts)
IP20
IP66 (with door coupling rotary handle)
IP00 (terminations, phase isolator and strip terminal)
Max. 10 segments of 16 mm x 0.8 mm at rear-side connection (punched)
Max. 10 segments of 16 mm x 0.8 mm at box terminal
Min. 2 segments of 9 mm x 0.8 mm at box terminal
6500 operations at 400 V AC-3
6500 operations at 415 V AC-3
10000 operations at 400 V AC-1
7500 operations at 690 V AC-1
16 mm² - 18 mm² (2x)
Max. 20 mm x 5 mm direct at switch rear-side connection
Min. 16 mm x 5 mm direct at switch rear-side connection
6 mm² - 12 mm² (1x) at box terminal
6 mm² (1x) at tunnel terminal
4 mm² - 350 mm² (1x) at box terminal
4 mm² - 3/0 mm² (1x) direct at switch rear-side connection
