View larger

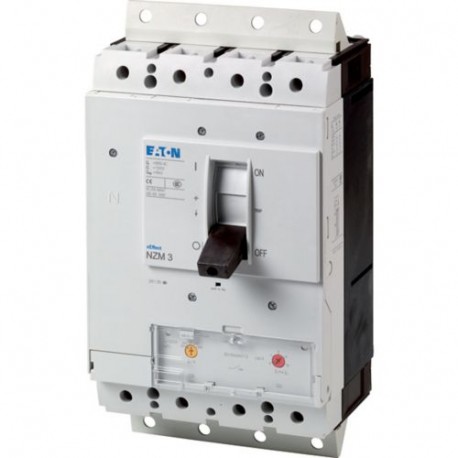

NZMC3-4-A320/200-SVE 168465 Y7-168465 EATON ELECTRIC NZMC3-4-A320/200-SVE
NZMC3-4-A320/200-SVE
168465
Y7-168465
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Operating as a reliable protective switching device, the NZMC3-4-A320/200-SVE EATON ELECTRIC circuit breaker defends commercial and industrial power circuits against dangerous overcurrent conditions. Molded case units of this type are routinely installed inside electrical enclosures to provide reliable fault interruption and manual circuit isolation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 320 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 250 A
- Adjustment range undelayed short-circuit release (EF007131): 1920 A
- Device construction (EF008240): Built-in device plug-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): No
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 4
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
Product specifications
Motor drive optional
