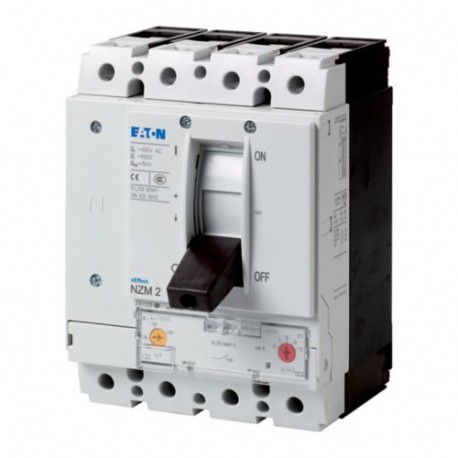

NZMB2-4-AF80-BT-NA 153382 Y7-153382 EATON ELECTRIC Circuit-breaker, 4p, 80A, box terminals
NZMB2-4-AF80-BT-NA
153382
Y7-153382
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The NZMB2-4-AF80-BT-NA 153382 Y7-153382 EATON ELECTRIC Circuit-breaker, 4p, 80A, box terminals is a molded case circuit breaker engineered to protect commercial and light industrial electrical circuits from overloads and short circuits. Four-pole breakers are frequently utilized in distribution panels to switch and protect both phase and neutral conductors safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 80 A
- Rated voltage (EF003977): 440 V
- Overload release current setting (EF002336): 80 A
- Adjustment range undelayed short-circuit release (EF007131): 6 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): Yes
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 4
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
Specially designed for North America
UL (File No. E31593)
IEC
UL (Category Control Number DIVQ)
IEC 60947-2
UL 489
IEC/EN 60947
UL listed
CSA-C22.2 No. 5-09
UL/CSA
Product specifications
- Branch circuits, feeder circuits
- Use in unearthed supply systems at 440 V
Motor drive optional
Built-in device fixed built-in technique
Fixed
Damp heat, constant, to IEC 60068-2-78
500 V AC (between auxiliary contacts and main contacts)
IP20
IP40 (with insulating surround)
IP00 (terminations, phase isolator and strip terminal)
Current limiting circuit breaker
