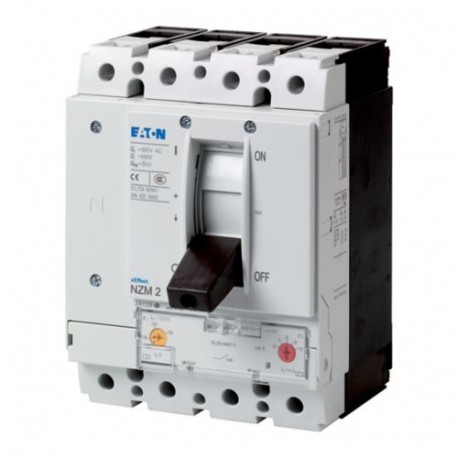

NZMB2-4-AF200-BT-NA 113014 Y7-113014 EATON ELECTRIC Circuit-breaker, 4p, 200A, box terminals
NZMB2-4-AF200-BT-NA
113014
Y7-113014
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Protect electrical distribution circuits and connected machinery with the Eaton Moeller NZMB2-4-AF200-BT-NA 113014 Y7-113014 EATON ELECTRIC Circuit-breaker, 4p, 200A, box terminals. Circuit breakers are essential safety devices that automatically disconnect power during overloads and short circuits.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 200 A
- Rated voltage (EF003977): 440 V
- Overload release current setting (EF002336): 200 A
- Adjustment range undelayed short-circuit release (EF007131): 6 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): Yes
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 4
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
UL/CSA
IEC 60947-2
UL (File No. E31593)
IEC/EN 60947
CE marking
UL 489
UL (Category Control Number DIVQ)
Specially designed for North America
CSA-C22.2 No. 5-09
IEC
Product specifications
- Branch circuits, feeder circuits
- Use in unearthed supply systems at 440 V
Protection unit
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
Damp heat, cyclic, to IEC 60068-2-30
300 V AC (between the auxiliary contacts)
IP20
200 A (660-690 V AC-3, making and breaking capacity)
300 A (415 V AC-1, making and breaking capacity)
IP66 (with door coupling rotary handle)
IP00 (terminations, phase isolator and strip terminal)
Min. 2 segments of 9 mm x 0.8 mm at box terminal
Max. 10 segments of 16 mm x 0.8 mm at box terminal
Max. 10 segments of 16 mm x 0.8 mm at rear-side connection (punched)
7500 operations at 400 V AC-1
6500 operations at 415 V AC-3
System and cable protection
16 mm² - 18 mm² (2x)
Max. 20 mm x 5 mm direct at switch rear-side connection
Min. 16 mm x 5 mm direct at switch rear-side connection
6 mm² - 11 mm² (1x) direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
4 mm² - 350 mm² (1x) at box terminal
4 mm² - 350 mm² (1x) at tunnel terminal
