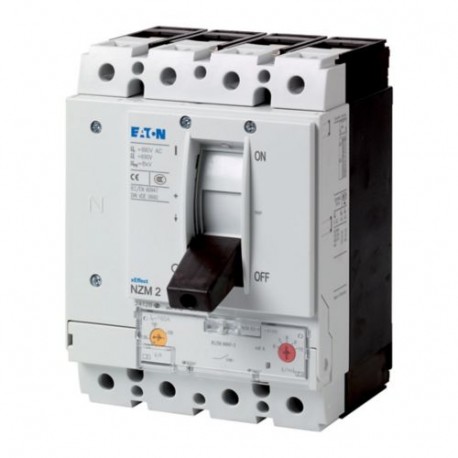

NZMB2-4-AF100-BT-NA 153384 Y7-153384 EATON ELECTRIC Circuit-breaker, 4p, 100A, box terminals
NZMB2-4-AF100-BT-NA
153384
Y7-153384
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller NZMB2-4-AF100-BT-NA circuit-breaker is a molded case electrical protection device used to automatically isolate power distribution circuits during overload or short-circuit events. Such industrial components are standard in panel building and machine control systems to prevent equipment damage and electrical hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 100 A
- Rated voltage (EF003977): 440 V
- Overload release current setting (EF002336): 100 A
- Adjustment range undelayed short-circuit release (EF007131): 6 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): Yes
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 4
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
IEC/EN 60947
CSA-C22.2 No. 5-09
UL listed
UL (File No. E31593)
CE marking
UL/CSA
IEC 60947-2
IEC
UL (Category Control Number DIVQ)
Specially designed for North America
Product specifications
- Branch circuits, feeder circuits
- Use in unearthed supply systems at 440 V
Protection unit
Built-in device fixed built-in technique
Fixed
Damp heat, cyclic, to IEC 60068-2-30
300 V AC (between the auxiliary contacts)
IP20 (basic degree of protection, in the operating controls area)
IP40 (with insulating surround)
IP10 (tunnel terminal)
Current limiting circuit breaker
