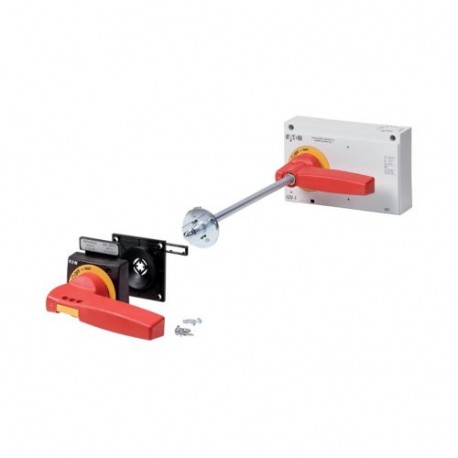

NZM4-XHB-DAR 119003 Y7-119003 EATON ELECTRIC Main switch assembly kit, +additional handle red, size 4
NZM4-XHB-DAR
119003
Y7-119003
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller main switch assembly kit provides the mechanical interface and operational hardware needed for controlling industrial disconnect devices safely. Assemblies of this type are commonly integrated into electrical panels and heavy-duty machinery to ensure reliable circuit isolation during maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): Yes
- With extension shaft (EF001434): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
UL listed
UL (File No. E140305)
IEC60947
CSA-C22.2 No. 5-09
CSA (Class No. 1437-01)
Specially designed for North America
UL (Category Control Number DIHS)
CE marking
CSA certified
NFPA79
CSA (File No. 22086)
UL489
Product specifications
PN4(-4)
NZM4(-4)
Lockable
Extension shaft NZM…-XV6 for mounting depth 600 mm
External warning plate/marking plate in German/English
Add-on rotary handle on switch with "Deliberate Action" operation as per NFPA79 and UL508A Part 2
Black and yellow lightning symbol
Door coupling rotary handle with rotary drive
Padlock
Switch disconnector
Emergency stop
Door interlock not defeated in the locked OFF position.
Door interlock on OFF with max. 3 padlocks
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Lockable on the switch in the 0 position
Can also be modified in I position
With door interlock
4X. 12
