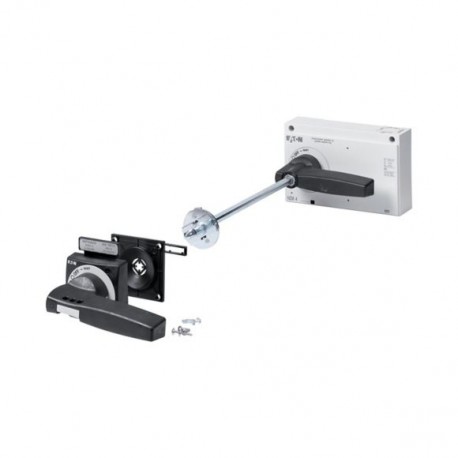

NZM4-XHB-DA-NA 119004 Y7-119004 EATON ELECTRIC Main switch assembly kit, +additional handle, size 4, NA type
NZM4-XHB-DA-NA
119004
Y7-119004
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller NZM4-XHB-DA-NA 119004 Y7-119004 EATON ELECTRIC Main switch assembly kit, +additional handle, size 4, NA type serves as a comprehensive mechanical control package for industrial main disconnects. Assembly kits of this nature are deployed in large electrical distribution systems to mount, link, and operate high-capacity circuit protection hardware safely through enclosure doors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
CSA-C22.2 No. 5-09
UL508A
CSA (Class No. 1437-01)
UL489
UL listed
CSA certified
UL (File No. E140305)
CSA (File No. 22086)
UL (Category Control Number DIHS)
Specially designed for North America
CE marking
NFPA79
Product specifications
With black door coupling rotary handle
Black and yellow lightning symbol
Door coupling rotary handle with rotary drive
Extension shaft
Add-on rotary handle on switch with "Deliberate Action" operation as per NFPA79 and UL508A Part 2
External warning plate/marking plate in German/English
Padlock
N(S)4(-4)
PN4(-4)
Switch disconnector
Door interlock not defeated in the locked OFF position.
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
Door interlock on OFF with max. 3 padlocks
Lockable on the switch in the 0 position
Lockable on the 0 position on the handle using up to 3 padlocks
With door interlock
4X. 12
