NZM4-XHB-DA 119002 Y7-119002 EATON ELECTRIC Main switch assembly kit, +additional handle, size 4
NZM4-XHB-DA
119002
Y7-119002
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

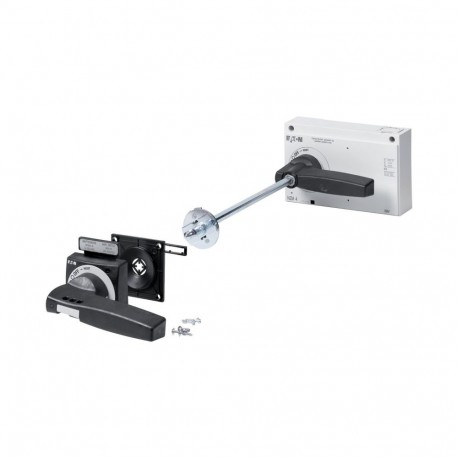

The NZM4-XHB-DA 119002 Y7-119002 EATON ELECTRIC Main switch assembly kit, +additional handle, size 4 is a modular hardware package designed to configure high-capacity electrical protection equipment. Assembly kits allow technicians to customize switchgear layouts with secure mechanical operator interfaces for heavy-duty power distribution installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
UL listed
IEC60947
CSA certified
UL (File No. E140305)
Specially designed for North America
NFPA79
CSA (File No. 22086)
UL508A
CSA-C22.2 No. 5-09
UL (Category Control Number DIHS)
UL489
CE marking
Product specifications
NZM4(-4)
PN4(-4)
With black door coupling rotary handle
Extension shaft NZM…-XV6 for mounting depth 600 mm
Black and yellow lightning symbol
External warning plate/marking plate in German/English
Add-on rotary handle on switch with "Deliberate Action" operation as per NFPA79 and UL508A Part 2
Padlock
Switch disconnector
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Door interlock on OFF with max. 3 padlocks
Door interlock not defeated in the locked OFF position.
Lockable on the switch in the 0 position
Lockable on the 0 position on the handle using up to 3 padlocks
Can also be modified in I position
4X. 12
