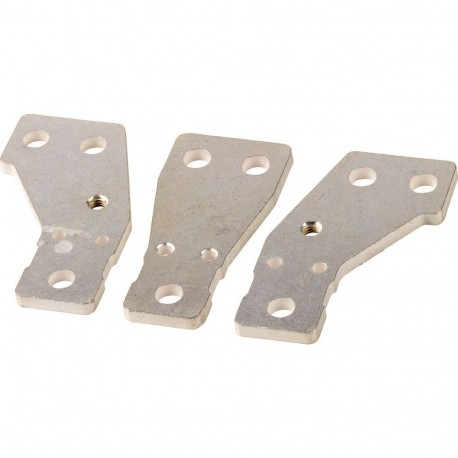

EATON - MOELLER NZM3-XKV70-2 NZM3-XKV70-2 119860 Y7-119860 EATON ELECTRIC Connection width extension, 3p, 2-hole, size 3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NZM3-XKV70-2 119860 Y7-119860 EATON ELECTRIC Connection width extension, 3p, 2-hole, size 3

NZM3-XKV70-2

119860

Y7-119860

EATON - MOELLER

1 Pcs.

Connection width extension, 3p, 2-hole, size 3 NZM3-XKV70-2 Eaton Moeller series NZM - Molded Case Circuit Breaker. Connection width extension, 3p, 2-hole, size 3 Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for a terminal located at top or bottom for 3 pole circuit-breakers. Double hole fitting for up to 4 185 mm² cable lugs, 50mm busbar or large flat cable terminal NZM4-XKB or large tunnel terminal NZM4-XKA. Can be fitted to circuit-breaker with screw connection. Phase isolator, insulation plate and 2 control circuit terminals included as standard. Can be used for: NZM3, PN3, N(S)3

Automation > Connection vane/phase spreader
Circuit Breakers NZM
