EATON - MOELLER NZM3-4-XKV1P NZM3-4-XKV1P 168593 Y7-168593 EATON ELECTRIC Connection terminals for NZM-DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NZM3-4-XKV1P 168593 Y7-168593 EATON ELECTRIC Connection terminals for NZM-DC

NZM3-4-XKV1P

168593

Y7-168593

EATON - MOELLER

1 Pcs.

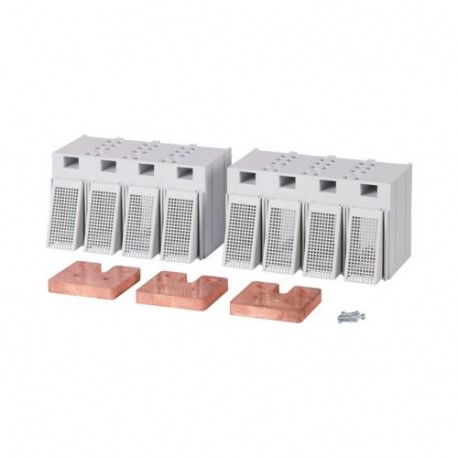

Connection terminals for NZM-DC NZM3-4-XKV1P Eaton Moeller series NZM - Molded Case Circuit Breaker. Link kit, +cover, 4p, /1p, 3 Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Notes: type contains parts for both switch sides for 4 pole NN..-S1-DC switches, that are used as 1 pole switches for DC. The links are used to connect contacts in series. Jumper kit with cover for use with: N3-4-..S1-DC

Automation > Wiring set for power circuit breaker
Circuit Breakers NZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller series NZM link kit
Catalog Number
168593
Model Code
NZM3-4-XKV1P
EAN
4015081650729
Product Length/Depth
237 mm
Product Height
170 mm
Product Width
222 mm
Product Weight
2.452 kg
Compliances
IEC
RoHS conform

Product specifications

Used with
N3-4-320(400)-S1(-S15)-DC
Type
AccessoryDC link kitTerminal
Special features
Jumper kit with cover IP2X
Amperage Rating
400 A (40 °C), 338 A (65 °C)
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Frame
NZM3
Suitable for
Four-pole
Number of poles
Single-pole
Model
Other

ETIM for 168593 Low-voltage industrial controls and switchgear (EC002050)
Feature Name Feature Value
Suitable for number of poles (EF001589) 4
Model (EF000010) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
