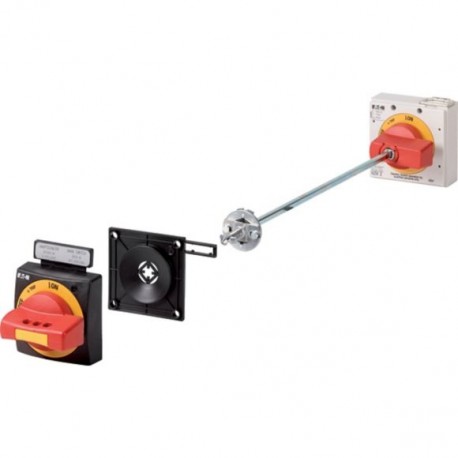

NZM2-XHB-DAR 116896 Y7-116896 EATON ELECTRIC Complete Kit mounting handle to door, +additional controller re..
NZM2-XHB-DAR
116896
Y7-116896
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Ensure reliable emergency intervention and safety compliance with this Eaton Moeller Complete Kit mounting handle to door, +additional controller re.. (part number NZM2-XHB-DAR). Door-mounted operating handles are standard fixtures on electrical distribution panels, allowing technicians to safely control disconnect switches and circuit breakers while maintaining strict interlocking protocols.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): false
- With key lock (EF026057): false
- Padlock locking (EF001163): true
- Colour (EF000007): Red
- Suitable for emergency stop (EF001433): true
- With extension shaft (EF001434): true
- Suitable for power circuit breaker (EF005863): true
- Suitable for switch disconnector (EF007252): true
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
CSA (File No. 22086)
UL (Category Control Number DIHS)
Specially designed for North America
UL508A
CSA (Class No. 1437-01)
CE marking
CSA-C22.2 No. 5-09
CSA certified
IEC60947
UL489
UL listed
NFPA79
Product specifications
With red door coupling rotary handle for use of switch as emergency switching off device
External warning plate/marking plate in German/English
Extension shaft
Black and yellow lightning symbol
Add-on rotary handle on switch with "Deliberate Action" operation as per NFPA79 and UL508A Part 2
Padlock
Extension shaft NZM…-XV6 for mounting depth 600 mm
PN2(-4)
N(S)2(-4)
Power circuit breaker
Emergency stop
Door interlock on OFF with max. 3 padlocks
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Door interlock not defeated in the locked OFF position.
Lockable on the switch in the 0 position
With door interlock
Can also be modified in I position
4X. 12
