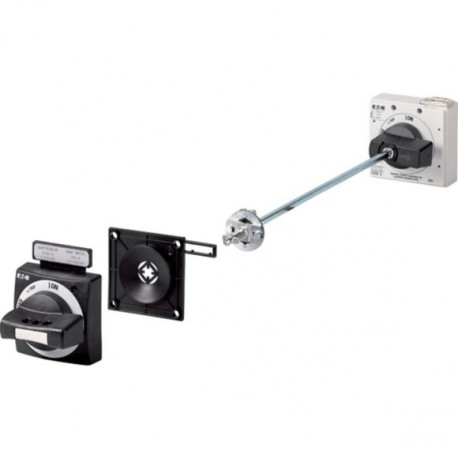

NZM2-XHB-DA-NA 116897 Y7-116897 EATON ELECTRIC Complete Kit mounting handle to door, +additional controller,..
NZM2-XHB-DA-NA
116897
Y7-116897
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller NZM2-XHB-DA-NA complete kit mounting handle to door provides a secure external operator interface for industrial enclosures. Operators use door-mounted control handles to safely manage internal circuit breakers and switch disconnectors without opening panel doors. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
Specially designed for North America
UL508A
NFPA79
CSA (File No. 22086)
CSA-C22.2 No. 5-09
UL489
UL (File No. E140305)
CE marking
IEC60947
UL (Category Control Number DIHS)
UL listed
CSA certified
Product specifications
Lockable
Black and yellow lightning symbol
External warning plate/marking plate in German/English
Door coupling rotary handle with rotary drive
Padlock
Extension shaft NZM…-XV6 for mounting depth 600 mm
PN2(-4)
NZM2(-4)
Power circuit breaker
Door interlock not defeated in the locked OFF position.
With activated door interlock. Cannot be opened in ON, OFF, or TRIP. Can only be opened in RESET.
Door interlock on OFF with max. 3 padlocks
Lockable on the switch in the 0 position
Lockable on the 0 position on the handle using up to 3 padlocks
Can also be modified in I position
4X. 12
