NZM2-XHB-DA 116895 Y7-116895 EATON ELECTRIC Complete Kit mounting handle to door, +additional controller, NZ..
NZM2-XHB-DA
116895
Y7-116895
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

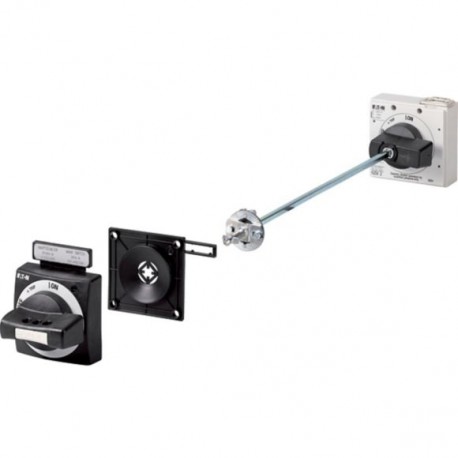

A complete kit mounting handle to door provides the mechanical linkage required to operate internal electrical breakers from the outside of a protective industrial cabinet. The Eaton Moeller NZM2-XHB-DA assembly includes the necessary shafts and handles to facilitate secure external switching and lockout capabilities on electrical enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): Yes
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
UL489
UL (File No. E140305)
NFPA79
UL listed
CSA-C22.2 No. 5-09
IEC60947
Specially designed for North America
UL (Category Control Number DIHS)
CSA certified
CSA (Class No. 1437-01)
CSA (File No. 22086)
CE marking
Product specifications
- External warning plate/designation label can be clipped on.
- For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.
- Kit for use as a main switch
With black door coupling rotary handle
Extension shaft
External warning plate/marking plate in German/English
Black and yellow lightning symbol
Add-on rotary handle on switch with "Deliberate Action" operation as per NFPA79 and UL508A Part 2
Padlock
Extension shaft NZM…-XV6 for mounting depth 600 mm
PN2(-4)
NZM2(-4)
Switch disconnector
Door interlock can be modified such that it can be defeated from the outside using a screwdriver
Door interlock not defeated in the locked OFF position.
After the door interlock is activated, must not be opened while on ON or TRIP. Must only be opened on OFF
Lockable on the 0 position on the handle using up to 3 padlocks
Lockable on the switch in the 0 position
With door interlock
4X. 12
