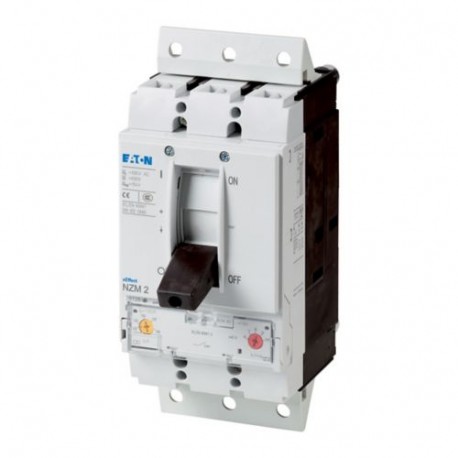

NZMN2-A125-SVE 113243 Y7-113243 EATON ELECTRIC Circuit-breaker, 3p, 125A, plug-in module
NZMN2-A125-SVE
113243
Y7-113243
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller circuit-breaker (NZMN2-A125-SVE) is engineered to protect electrical distribution circuits from damage caused by excess current during overloads or short circuits. These devices are commonly integrated into modular industrial switchboards to enable safe maintenance and reliable fault interruption.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 125 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 100 A
- Adjustment range undelayed short-circuit release (EF007131): 750 A
- Power loss (EF005387): None W
- Device construction (EF008240): Built-in device plug-in technique
- Integrated earth fault protection (EF007296): false
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): false
- DIN rail (top hat rail) mounting optional (EF008904): true
- With switched-off indicator (EF007006): false
- With integrated under voltage release (EF001390): false
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front side
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): true
More info
▲General specifications
Product specifications
Motor drive optional
Plug-in unit
DIN rail (top hat rail) mounting optional
