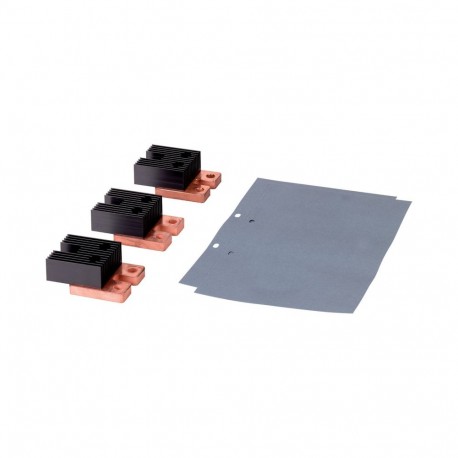

NZM2-4-XKVI1P-K 168596 Y7-168596 EATON ELECTRIC Link kit, +insulating plates +heat sinks, 4p, /1p
NZM2-4-XKVI1P-K
168596
Y7-168596
EATON - MOELLER
1 Pcs.
Link kit, +insulating plates +heat sinks, 4p, /1p
NZM2-4-XKVI1P-K
Eaton Moeller series NZM - Molded Case Circuit Breaker. Link kit, +insulating plates +heat sinks, 4p, /1p, 2
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Can be used for: N2-4-..S1-DC
Automation > Wiring set for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller series NZM link kit
Catalog Number
168596
Model Code
NZM2-4-XKVI1P-K
EAN
4015081650835
Product Length/Depth
150 mm
Product Height
94 mm
Product Width
95 mm
Product Weight
0.759 kg
Compliances
IEC
RoHS conform
RoHS conform
Product specifications
Type
AccessoryDC link kitTerminal
Special features
Jumper kit with insulating plates, phase isolators IP00 and heat sinks
Amperage Rating
238 A (40 °C), 180 A (65 °C)
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Frame
NZM2
Used with
N2-4-200(250)-S1(-S15)-DC
Suitable for
Four-pole
Number of poles
Single-pole
Model
Other
| Feature Name | Feature Value |
|---|---|
| Suitable for number of poles (EF001589) | 4 |
| Model (EF000010) | Other |
