EATON - MOELLER NZM1-XHB-DA-AS NZM1-XHB-DA-AS 158048 Y7-158048 EATON ELECTRIC Support to handle NZM1-XHB-NA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NZM1-XHB-DA-AS 158048 Y7-158048 EATON ELECTRIC Support to handle NZM1-XHB-NA

NZM1-XHB-DA-AS

158048

Y7-158048

EATON - MOELLER

1 Pcs.

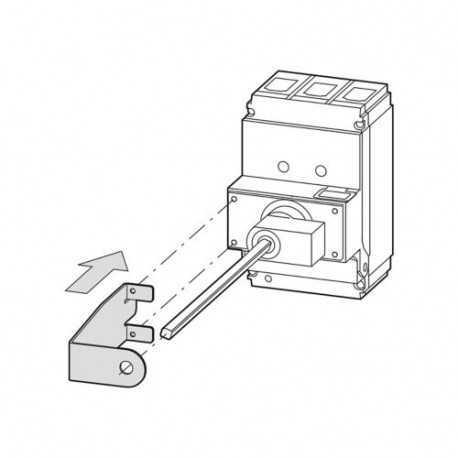

Support to handle NZM1-XHB-NA NZM1-XHB-DA-AS Eaton Moeller series NZM - Molded Case Circuit Breaker. Shaft support, for XHB-DA Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Door coupling rotary handle with rotary drive. Add-on rotary handle on switch with “Deliberate Action” operation. Extension shaft NZM..-XV6 for mounting depth 600 mm extension shaft NZM1/2-XV4 with NZM1 for mounting depth 400 mm. External warning plate/marking plate in German/English. Black and yellow lightning symbol. External warning plate/marking plate can be clipped on . For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.

Automation > Handle for power circuit breaker
Circuit Breakers NZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller NZM1-XHB-DA-AS functions as a support component for rotary handle assemblies, ensuring proper mechanical alignment and stability on switch enclosures. Accessories of this type reinforce panel-mounted operator interfaces against mechanical wear during daily industrial use. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With restart blockage (EF004054): No
  • With key lock (EF026057): No
  • Padlock locking (EF001163): No
  • Colour (EF000007): Grey
  • Suitable for emergency stop (EF001433): No
  • With extension shaft (EF001434): Yes
  • Suitable for power circuit breaker (EF005863): Yes
  • Suitable for switch disconnector (EF007252): Yes

More info

▲

General specifications

Product Name
Eaton Moeller series NZM operating element
Catalog Number
158048
Model Code
NZM1-XHB-DA-AS
EAN
4015081546374
Product Length/Depth
150 mm
Product Height
50 mm
Product Width
62 mm
Product Weight
0.12 kg
Compliances
IEC
UL/CSA
RoHS conform

Product specifications

Used with
NZM1-XHB-DA
Type
Special features
Shaft support for when using long shafts
Color
Gray
Fitted with:
Shaft support
Extension shaft
Frame
NZM1
Suitable for
Power circuit breaker
Switch disconnector
Degree of protection / NEMA enclosure type
UL/CSA 14 type 4X, type 12
IP66

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
