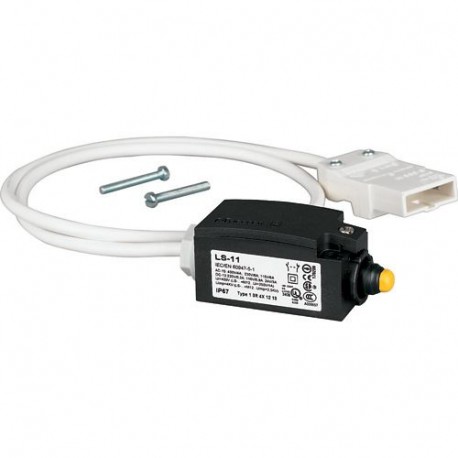

EATON - MOELLER NWS-TKT NWS-TKT 255420 EATON ELECTRIC Door contact with plug-in connection View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NWS-TKT 255420 EATON ELECTRIC Door contact with plug-in connection

NWS-TKT

255420

EATON - MOELLER

1 Pcs.

Door contact with plug-in connection Micro Detection Cabinet Door Door contact with plug-in connection, 1 N/C and 1 N/O, IP65 degree of protection, material characteristic insulated material, circuit-breaker data: 230 V AC / 6 A the door contact is used to switch cabinet lights on and off., Equipment supplied: 1 door contact, 1 connecting cable, various fixing material

Automation > End switch
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An NWS-TKT EATON ELECTRIC door contact with plug-in connection is deployed in electrical enclosures and safety access panels to detect unauthorized opening or confirm secure closures. Door contacts help maintain environmental integrity within control cabinets and trigger alarms or interlocks when breached.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width sensor (EF007094): 30 mm
  • Diameter sensor (EF007111): 8.2 mm
  • Height of sensor (EF007283): 74 mm
  • Length of sensor (EF007334): 76 mm
  • Rated operation current Ie at AC-15, 24 V (EF007084): 6 A
  • Rated operation current Ie at AC-15, 125 V (EF007082): 6 A
  • Rated operation current Ie at AC-15, 230 V (EF001385): 6 A
  • Rated operation current Ie at DC-13, 24 V (EF007087): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.3 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.8 A
  • Switching function (EF000189): Quick-break switch
  • Switching function latching (EF007447): No
  • Output electronic (EF006987): No
  • Forced opening (EF006694): No
  • Number of safety auxiliary contacts (EF006940): 2
  • Number of contacts as normally closed contact (EF008255): 1

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
255420
Model Code
NWS-TKT
EAN
4015082554200
Product Length/Depth
300 mm
Product Height
110 mm
Product Width
180 mm
Product Weight
0.055 kg
Compliances
CE Marked
RoHS conform

Product specifications

Electric connection type
Cable entry metrical
Enclosure material finishing
Other
Actuator alignment
Other
Enclosure material
Plastic
Enclosure type
Other
Special features
Type
General switchboard accessory for panel building
Explosion safety category for dust
None
Switch type
Quick-break switch
Explosion safety category for gas
None
Degree of Protection
IP65
Interface type
None
Accessories
Control panel lighting
Actuator type
Plunger
Unit type
Accessories
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Functions
Accessory
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1
Number of safety auxiliary contacts
2
Rated operational current (Ie) at AC-15, 125 V
6 A
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
6 A
Rated operational current (Ie) at AC-15, 24 V
6 A
Rated operational current (Ie) at DC-13, 125 V
0.3 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.8 A
Rated operational current (Ie) at DC-13, 24 V
3 A
Sensor diameter
8.2 mm
Sensor height
74 mm
Sensor length
76 mm
Sensor width
30 mm
