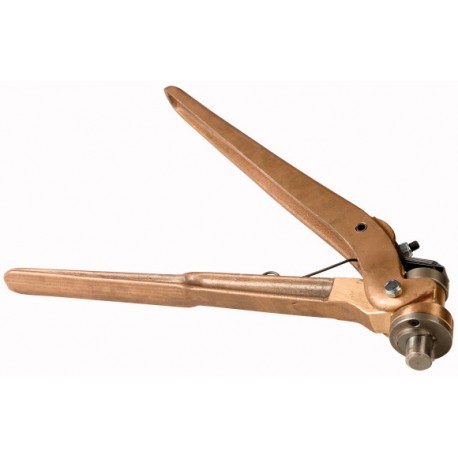

EATON - MOELLER BA/C-NZ-22 BA/C-NZ-22 028144 BA-C-NZ-22Q EATON ELECTRIC 028144 BA/C-NZ-22 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BA/C-NZ-22 028144 BA-C-NZ-22Q EATON ELECTRIC 028144 BA/C-NZ-22

BA/C-NZ-22

028144

BA-C-NZ-22Q

EATON - MOELLER

1 Pcs.

028144 BA/C-NZ-22 Hole die-cutting tool 22 mm Notching tool

Automation > Accessories/spare parts for command devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Prepare enclosures accurately for control devices using the Eaton Moeller BA/C-NZ-22 hole die-cutting tool 22 mm notching tool. Specialized fabrication accessories assist panel builders in cutting clean mounting holes and anti-rotation notches in sheet metal. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: BA/C-NZ-22
  • Catalogue code: 028144
  • Catalogue title: BA/C-NZ-22 028144 BA-C-NZ-22Q EATON ELECTRIC 028144 BA/C-NZ-22
  • Product description: Notching tool Accessories for the control circuit devices program Delivery program Accessories General accessories Basic function accessories Notching tool Punching tool to produce the cutout for the anti-rotation lug to
  • Manufacturer summary: 028144 BA/C-NZ-22 Hole die-cutting tool 22 mm Notching tool

More info

▲
Notching tool
Accessories for the control circuit devices program

Delivery program

Accessories
General accessories
Basic function accessories
Notching tool
Punching tool to produce the cutout for the anti-rotation lug to IEC/EN 60947‑5‑1
St 37 sheet steel, max. 3 mm thick
VA high-grade steel max. 1.5 mm thick,
Connection to SmartWire-DT
no
For use with
St 37 sheet steel, max. 3 mm thick
VA high-grade steel max. 1.5 mm thick,
Notes

Price cannot be discounted

Technical data

General
Ambient temperatureOpen
-25 - +70 °C

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Accessories for control circuit devices (EC002024)
Type of electrical accessory
Other
Type of mechanical accessory
Other

Approvals

North America Certification
UL/CSA certification not required

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
