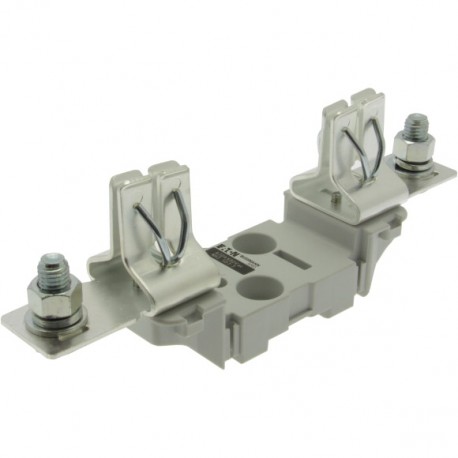

EATON - MOELLER NH3 SINGLE POLE SILVER NH3 SINGLE POLE SILVER SD3-S EATON ELECTRIC Fuse-base, LV, 630 A, AC 690 V, NH3, 1P, IEC, screw mount View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH3 SINGLE POLE SILVER SD3-S EATON ELECTRIC Fuse-base, LV, 630 A, AC 690 V, NH3, 1P, IEC, screw mount

NH3 SINGLE POLE SILVER

SD3S

SD3-S

EATON - MOELLER

3 Pcs.

Fuse-base, LV, 630 A, AC 690 V, NH3, 1P, IEC, screw mount NH3 SINGLE POLE SILVER Fuse base, low voltage, 630 A, AC 690 V, NH3, 1P, IEC, screw mounting IP protection kit, Low voltage NH fuse base accessory, Number of poles: Single-pole, Rated current (gl/gG): 630 A, Construction size: NH3, Voltage rating: 690 V a.c., Mounting method: Screw

Automation > Low Voltage HRC fuse base
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Fuse base, low voltage, 630 A, AC 690 V, NH3, 1P, IEC, screw mounting
Fuse accessory, fuse-base, low voltage, 630 A, AC 690 V, NH3, 1P, IEC, screw mounting, IEC 60269-1, with thermoplastic body. Optional accessories: clip-in phase barriers, terminal shrouds, fuse covers, microswitch, IP20 fingersafe protection kits, neutral links, phase barriers

Delivery program

Product range
Fuse accessory
Basic function
Fuse-base
Field of application
low voltage
Rated current [I]
630 A
Rated voltage
AC 690 V
Construction size
NH3
Description
screw mounting
Number of poles
1P
Standard/Approval
IEC
Material
Thermoplastic body
Standards/Regulations
IEC 60269-1
Optional accessories
clip-in phase barriers
terminal shrouds
fuse-covers
microswitch
IP20 finger-safe protection kits
neutral links
phase barriers

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse base (EC000067)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Low-Voltage HRC fuse base ([email protected] [AKE278013])
Construction size
NH3
Number of poles
1
Rated current
630 A
Bus-mounting type
No
Swivelling mechanism
No
