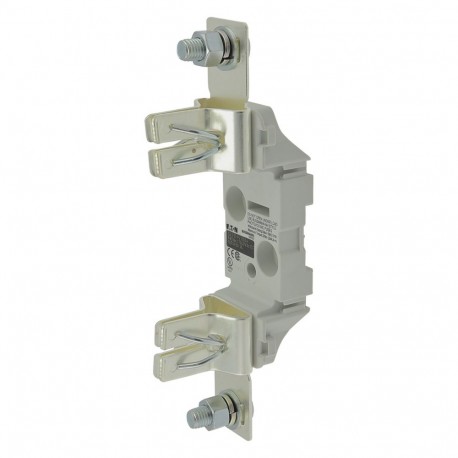

EATON - MOELLER 630A, IP20, SD3, Single-pole 630A, IP20, SD3, Single-pole SD3-D-PV EATON ELECTRIC Base fuse, ultra rapid, 630 A, AC 690 V, NH3, 1F, IEC, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

630A, IP20, SD3, Single-pole SD3-D-PV EATON ELECTRIC Base fuse, ultra rapid, 630 A, AC 690 V, NH3, 1F, IEC, ..

630A, IP20, SD3, Single-pole

SD3DPV

SD3-D-PV

EATON - MOELLER

3 Pcs.

Base fuse, ultra rapid, 630 A, AC 690 V, NH3, 1F, IEC, UL, CSA NH3 SINGLE POLE PV Eaton NH Fuse Base, 630A, IP20, SD3, Single-pole, 283.2 lb-in, Used with Bussmann NH photovoltaic fuse links, 1500 Vdc, 60W 630A, IP20, SD3, Single-pole

Automation > Low Voltage HRC fuse base
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A specialized photovoltaic fuse base is designed to manage high-voltage direct current inputs originating from solar energy arrays and renewable power installations. These robust bases safely anchor rapid-action specialized fuses to protect sensitive inverter equipment from overcurrent conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: 630A, IP20, SD3, Single-pole
  • Catalogue code: SD3DPV

More info

▲

General specifications

Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
SD3-D-PV
UPC
051712393126
Product Length/Depth
200 mm
Product Height
250 mm
Product Width
200 mm
Product Weight
1442 g
Compliances
RoHS Compliant
Certifications
CSA Certified
IEC Rated

Product specifications

Amperage Rating
630 A
Fuse size
SD3
Used with
Bussmann NH photovoltaic fuse links
Voltage rating
1500 Vdc
