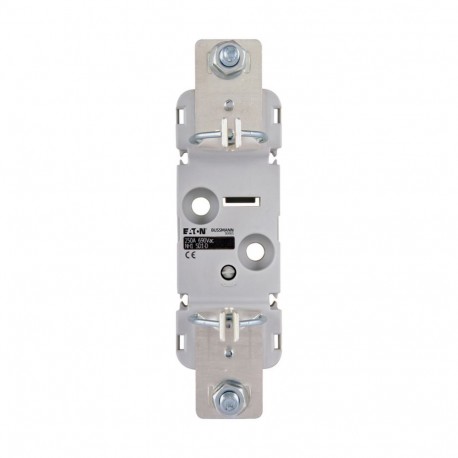

EATON - MOELLER FUSE BASE SIZE NH-01 FUSE BASE SIZE NH-01 SD1-S EATON ELECTRIC Fuse-base, LV, 250 A, AC 690 V, NH1, 1P, IEC, screw mount View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FUSE BASE SIZE NH-01 SD1-S EATON ELECTRIC Fuse-base, LV, 250 A, AC 690 V, NH1, 1P, IEC, screw mount

FUSE BASE SIZE NH-01

SD1S

SD1-S

EATON - MOELLER

1 Pcs.

Fuse-base, LV, 250 A, AC 690 V, NH1, 1P, IEC, screw mount FUSE BASE SIZE NH-01 FUSE BASE SIZE NH-01 - Fuse base, low voltage, 250 A, AC 690 V, NH1, 1P, IEC, screw mounting IP protection kit, Low voltage NH fuse base accessory, Number of poles: Single-pole, Rated current (gl/gG): 250 A, Construction size: NH1, Voltage rating: 690 V a.c., Mounting method: Screw

Automation > Low Voltage HRC fuse base
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a dependable foundation for industrial circuit protection, the FUSE BASE SIZE NH-01 from Eaton Moeller is a low voltage fuse-base built to standard NH dimensions. Electrical contractors integrate these bases into power distribution panels to provide secure mechanical support and safe terminal connections for NH1 fuse links. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: FUSE BASE SIZE NH-01
  • Catalogue code: SD1S
  • Catalogue title: FUSE BASE SIZE NH-01 SD1-S EATON ELECTRIC Fuse-base, LV, 250 A, AC 690 V, NH1, 1P, IEC, screw mount
  • Product description: Fuse base, low voltage, 250 A, AC 690 V, NH1, 1P, IEC, screw mounting Fuse accessory, fuse-base, low voltage, 250 A, AC 690 V, NH1, 1P, IEC, screw mounting, IEC 60269-1, with thermoplastic body. Optional accessories: cli
  • Manufacturer summary: Fuse-base, LV, 250 A, AC 690 V, NH1, 1P, IEC, screw mount FUSE BASE SIZE NH-01 FUSE BASE SIZE NH-01 - Fuse base, low voltage, 250 A, AC 690 V, NH1, 1P, IEC, screw mounting IP protection kit, Low voltage NH fuse base acce

More info

▲
Fuse base, low voltage, 250 A, AC 690 V, NH1, 1P, IEC, screw mounting
Fuse accessory, fuse-base, low voltage, 250 A, AC 690 V, NH1, 1P, IEC, screw mounting, IEC 60269-1, with thermoplastic body. Optional accessories: clip-in phase barriers, terminal shrouds, fuse covers, microswitch, IP20 fingersafe protection kits, neutral links, phase barriers

Delivery program

Product range
Fuse accessory
Basic function
Fuse-base
Field of application
low voltage
Rated current [I]
250 A
Rated voltage
AC 690 V
Construction size
NH1
Description
screw mounting
Number of poles
1P
Standard/Approval
IEC
Material
Thermoplastic body
Standards/Regulations
IEC 60269-1
Optional accessories
clip-in phase barriers
terminal shrouds
fuse-covers
microswitch
IP20 finger-safe protection kits
neutral links
phase barriers

Technical data ETIM 7.0

Aparatos de protección y fusibles (EG000020) / Portafusible para baja tensión (EC000067)
Tecnología electrónica, de automatización y de mando de procesos / Instalación eléctricas, equipo / Sistema de fusibles / Base de fusible de baja tensión ([email protected] [AKE278013])
Tamaño de construcción
NH1
Número de polos
1
Corriente nominal
250 Ampere
Tipo de montaje bus
No
Mecanismo giratorio
No
