> EATON - MOELLER > Bussmann Series Low Voltage fuses and accessories > 50NHG000B690

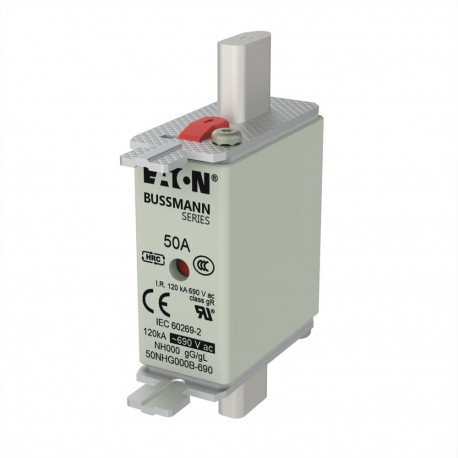

EATON - MOELLER NH FUSE 50A 690V SIZE 000 GG MGL NH FUSE 50A 690V SIZE 000 GG MGL 50NHG000B-690 EATON ELECTRIC cartridge fuse, BT, 50 A, AC 690 V, NH000, gL/.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 50A 690V SIZE 000 GG MGL 50NHG000B-690 EATON ELECTRIC cartridge fuse, BT, 50 A, AC 690 V, NH000, gL/..

NH FUSE 50A 690V SIZE 000 GG MGL

50NHG000B690

50NHG000B-690

EATON - MOELLER

3 Pcs.

NH FUSE 50A 690V SIZE 000 GG MGL Fuse-link, LV, 50 A, AC 690 V, NH000, gL/gG, IEC, dual indicator, live gripping lugs Fuse, fuse-link, low voltage, 50 A, AC 690 V, NH000, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
50NHG000B-690
Model Code
NH FUSE 50A 690V SIZE 000 GG MGL
EAN
5027590483162
UPC
051712688048
Product Length/Depth
79 mm
Product Height
51 mm
Product Width
21 mm
Product Weight
151.3333333 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Type
Fuse
Application
Amperage Rating
50 A
Fitted with:
Metal gripping lugs
Fuse size
NH000
Current type
AC
Breaking capacity
120 kA
Rated switching capacity
120 kA
Rated voltage AC
690 V
Class
Class gG/gL
Fuse type
Square body with knife blade contact
Utilization category
gL/gG (cable protection/equipment protection)
Interrupt rating
120 kAIC
Fuse indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
No
Watt losses
5.5 W
Connection
Blade end
Construction
NH000
Construction size
NH000
Fuse shape
Square body
Knife blade contacts
Voltage type
AC
Suitable for
Microswitch 170H0236
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors
Material
Ceramic body
Quantity
3
Voltage rating
690 V
Rated switching capacity AC
120 kA

ETIM for 50NHG000B-690 Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH000
Voltage type (EF000187) AC
Rated current (EF000227) 50 A
Rated voltage AC (EF007682) 690 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No
Power loss at rated current (EF012389) 5.5 W
