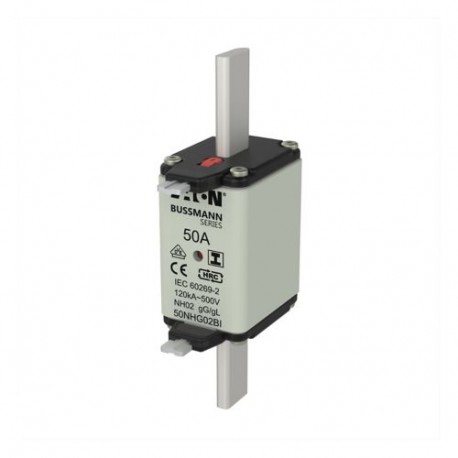

EATON - MOELLER NH FUSE 50A 500V GL/GG SIZE 02 NH FUSE 50A 500V GL/GG SIZE 02 50NHG02BI EATON ELECTRIC Fuse-link, LV, 50 A, AC 500 V, NH02, gL/gG, IEC, dua.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 50A 500V GL/GG SIZE 02 50NHG02BI EATON ELECTRIC Fuse-link, LV, 50 A, AC 500 V, NH02, gL/gG, IEC, dua..

NH FUSE 50A 500V GL/GG SIZE 02

50NHG02BI

50NHG02BI

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 50 A, AC 500 V, NH02, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 50A 500V GL/GG SIZE 02 Fuse, Fuse-link, low voltage, 50 A, AC 500 V, NH02, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller fuse-link NH FUSE 50A 500V GL/GG SIZE 02 provides dependable general-purpose overload and short-circuit protection for industrial electrical distribution networks. These standardized low-voltage fuses are installed in panel boards to protect cables and connected machinery safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH02
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 50 A
  • Rated voltage AC (EF007682): 500 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): Yes
  • Power loss at rated current (EF012389): 6.4 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
50NHG02BI
Model Code
NH FUSE 50A 500V GL/GG SIZE 02
EAN
5027590483377
Product Length/Depth
150 mm
Product Height
63 mm
Product Width
39 mm
Product Weight
437 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
50 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL

Product specification

Fuse size
NH000
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
Microswitch 170H0236
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
