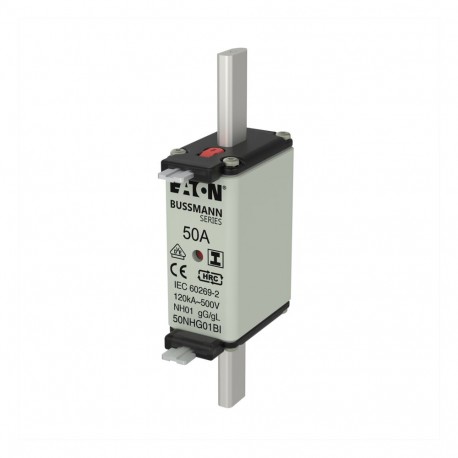

EATON - MOELLER NH FUSE 50A 500V GL/GG SIZE 01 NH FUSE 50A 500V GL/GG SIZE 01 50NHG01BI EATON ELECTRIC Fuse-link, LV, 50 A, AC 500 V, NH01, gL/gG, IEC, dua.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 50A 500V GL/GG SIZE 01 50NHG01BI EATON ELECTRIC Fuse-link, LV, 50 A, AC 500 V, NH01, gL/gG, IEC, dua..

NH FUSE 50A 500V GL/GG SIZE 01

50NHG01BI

50NHG01BI

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 50 A, AC 500 V, NH01, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 50A 500V GL/GG SIZE 01 Fuse, Fuse-link, low voltage, 50 A, AC 500 V, NH01, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Overcurrent protection for plant machinery and cables is provided by this Eaton Moeller NH FUSE 50A 500V GL/GG SIZE 01 fuse-link. Industrial switchboards frequently utilize low-voltage fuses of this design to ensure operational safety and localized fault isolation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH01
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 50 A
  • Rated voltage AC (EF007682): 500 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): Yes
  • Power loss at rated current (EF012389): 6.3 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
50NHG01BI
Model Code
NH FUSE 50A 500V GL/GG SIZE 01
EAN
5027590483315
Product Length/Depth
135 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
295 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
50 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL

Product specification

Fuse size
NH01
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
Microswitch 170H0235

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
