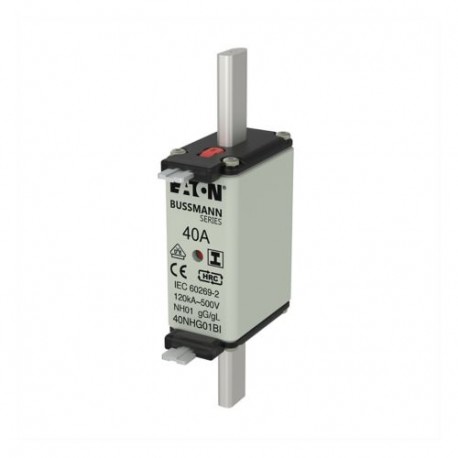

NH FUSE 40A 500V GL/GG SIZE 01 40NHG01BI EATON ELECTRIC Fuse-link, LV, 40 A, AC 500 V, NH01, gL/gG, IEC, dua..
NH FUSE 40A 500V GL/GG SIZE 01
40NHG01BI
40NHG01BI
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller NH FUSE 40A 500V GL/GG SIZE 01 is an industrial low-voltage fuse-link designed to safeguard electrical cables and distribution equipment against overcurrent and short-circuit faults. Fuses of this type interrupt excessive current flows by melting a calibrated internal element, thereby isolating damaged circuits and protecting upstream machinery from severe thermal damage.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH01
- Voltage type (EF000187): AC
- Rated current (EF000227): 40 A
- Rated voltage AC (EF007682): 500 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): Yes
- Power loss at rated current (EF012389): 5 W
More info
▲General specifications
RoHS Compliant
IEC 60269-2
DIN 43620
