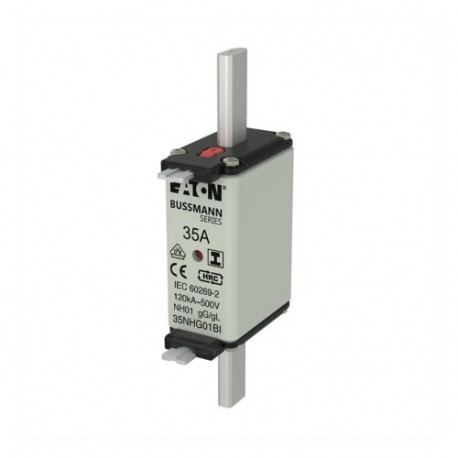

NH FUSE 35A 500V GL/GG SIZE 01 35NHG01BI EATON ELECTRIC Fuse-link, LV, 35 A, AC 500 V, NH01, gL/gG, IEC, dua..
NH FUSE 35A 500V GL/GG SIZE 01
35NHG01BI
35NHG01BI
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Electric Fuse-link, LV, 35 A, AC 500 V, NH01, gL/gG, IEC, dua.. is integrated into low-voltage distribution assemblies to safeguard wiring and equipment against sustained thermal overloads and short circuits. It reliably isolates faulted circuits to protect broader electrical networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH01
- Voltage type (EF000187): AC
- Rated current (EF000227): 35 A
- Rated voltage AC (EF007682): 500 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): Yes
- Power loss at rated current (EF012389): 4.6 W
More info
▲General specifications
RoHS Compliant
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
