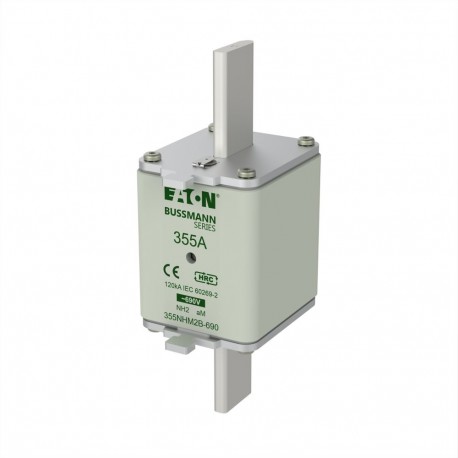

EATON - MOELLER NH FUSE 355A 690V aM SIZE 2 NH FUSE 355A 690V aM SIZE 2 355NHM2B-690 EATON ELECTRIC Fuse-link, 14x51 mm, 32A, gG View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 355A 690V aM SIZE 2 355NHM2B-690 EATON ELECTRIC Fuse-link, 14x51 mm, 32A, gG

NH FUSE 355A 690V aM SIZE 2

355NHM2B690

355NHM2B-690

EATON - MOELLER

3 Pcs.

Fuse-link, 14x51 mm, 32A, gG NH FUSE 355A 690V aM SIZE 2 Fuse-link, LV, 355 A, AC 690 V, NH2, aM, IEC, dual indicator, live gripping lugs Fuse, fuse-link, low voltage, 355 A, AC 690 V, NH2, aM, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
355NHM2B-690
Model Code
NH FUSE 355A 690V aM SIZE 2
EAN
5027590477574
UPC
051712419871
Product Length/Depth
150 mm
Product Height
71 mm
Product Width
54 mm
Product Weight
659 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
355 A
Voltage rating
690 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class aM
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH2
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD2-D Single pole NH Fuse base
TD2-D Tripe pole NH Fuse base
Microswitch 170H0235
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

ETIM for 355NHM2B-690 Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH2
Voltage type (EF000187) AC
Rated current (EF000227) 355 A
Rated voltage AC (EF007682) 690 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) aM (switchgear protection)
Type of fuse status indicator (EF004473) Top fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No
Power loss at rated current (EF012389) 28 W
