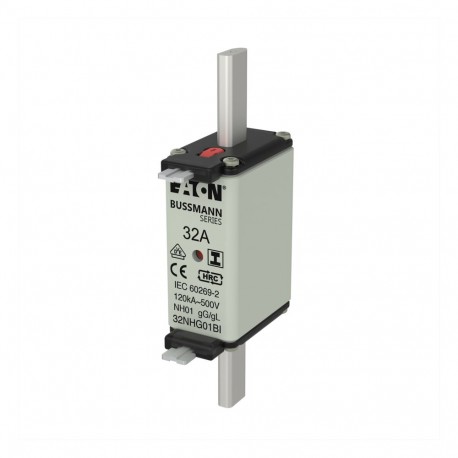

EATON - MOELLER NH FUSE 32A 500V GL/GG SIZE 01 NH FUSE 32A 500V GL/GG SIZE 01 32NHG01BI EATON ELECTRIC Fuse-link, LV, 32 A, AC 500 V, NH01, gL/gG, IEC, dua.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 32A 500V GL/GG SIZE 01 32NHG01BI EATON ELECTRIC Fuse-link, LV, 32 A, AC 500 V, NH01, gL/gG, IEC, dua..

NH FUSE 32A 500V GL/GG SIZE 01

32NHG01BI

32NHG01BI

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 32 A, AC 500 V, NH01, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 32A 500V GL/GG SIZE 01 Fuse-link, low voltage, 32 A, AC 500 V, 120 kA, NH01, gL/gG, IEC, dual indicator, insulated gripping lugs Fuse, Fuse-link, low voltage, 32 A, AC 500 V, NH01, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Fuse-link, low voltage, 32 A, AC 500 V, 120 kA, NH01, gL/gG, IEC, dual indicator, insulated gripping lugs
Fuse, Fuse-link, low voltage, 32 A, AC 500 V, NH01, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Delivery program

Product range
Fuse
Basic function
Fuse-link
Field of application
low voltage
Rated current [I]
32 A
Rated voltage
AC 500 V
Construction size
NH01
Utilization category
gL/gG
Status indicator
dual indicator
Description
insulated gripping lugs
Breaking Capacity
120 kA
usable for size/applications
industrial
Standard/Approval
IEC
Shape
square body with knife blade contacts
Standards/Regulations
IEC 60269-2 fuse system A
DIN 43620
VDE 0636-2

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
NH01
Rated current
32 A
Rated voltage
500 V
Voltage type
AC
Rated switching capacity
120 kA
Utilization category
gL/gG (cable protection/equipment protection)
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
Yes

ETIM for 32NHG01BI Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH01
Voltage type (EF000187) AC
Rated current (EF000227) 32 A
Rated voltage AC (EF007682) 500 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) Yes
Power loss at rated current (EF012389) 4.8 W
