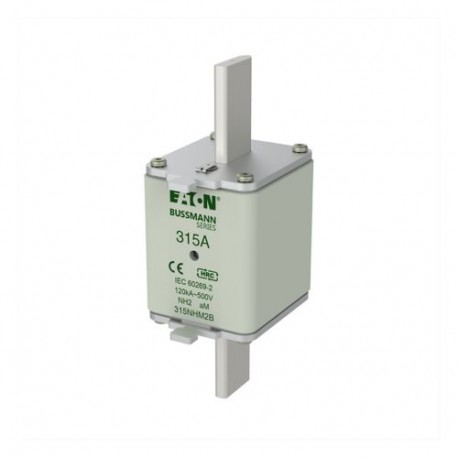

NH FUSE 315A 500V aM SIZE 2 IND 315NHM2B EATON ELECTRIC cartridge fuse, BT, 315 A, AC 500 V, NH2, a.m., IEC,..
NH FUSE 315A 500V aM SIZE 2 IND
315NHM2B
315NHM2B
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller NH FUSE 315A 500V aM SIZE 2 IND cartridge fuse provides reliable short-circuit protection specifically tailored for motor starter applications and industrial switchgear. Its aM characteristic ensures selective protection for switching devices under heavy load currents.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH2
- Voltage type (EF000187): AC
- Rated current (EF000227): 315 A
- Rated voltage AC (EF007682): 500 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
- Type of fuse status indicator (EF004473): Top fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): No
- Power loss at rated current (EF012389): 23 W
More info
▲General specifications
RoHS Compliant
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
TD2-D Tripe pole NH Fuse base
Microswitch 170H0235
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
