View larger
Images are for illustrative purposes only. Please refer to data sheet for details

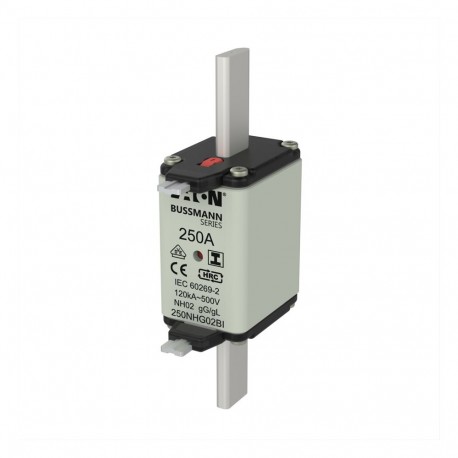

NH FUSE 250A 500V GL/GG SIZE 02 250NHG02BI EATON ELECTRIC Fuse-link, LV, 250 A, AC 500 V, NH02, gL/gG, IEC, ..
NH FUSE 250A 500V GL/GG SIZE 02
250NHG02BI
250NHG02BI
EATON - MOELLER
3 Pcs.
Fuse-link, LV, 250 A, AC 500 V, NH02, gL/gG, IEC, dual indicator, live gripping lugs
NH FUSE 250A 500V GL/GG SIZE 02
Eaton Bussmann series low voltage NH Fuse, 500V, 250A, 120 kAIC, Combination fuse status indicator, Class C gL/gG
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
250NHG02BI
EAN
5027590469579
UPC
051712233316
Product Length/Depth
150 mm
Product Height
63 mm
Product Width
39 mm
Product Weight
407.3333333 g
Compliances
RoHS Compliant
CE Marked
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
IEC 60269-2
DIN 43620
Electrical data
Amperage Rating
250 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz
Product specification
Fuse size
NH02
Insulated metal gripping lugs (IMGL)
Yes
Accessories
Suitable for
Microswitch BVL50
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH02 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 250 A |
| Rated voltage AC (EF007682) | 500 V |
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | Yes |
