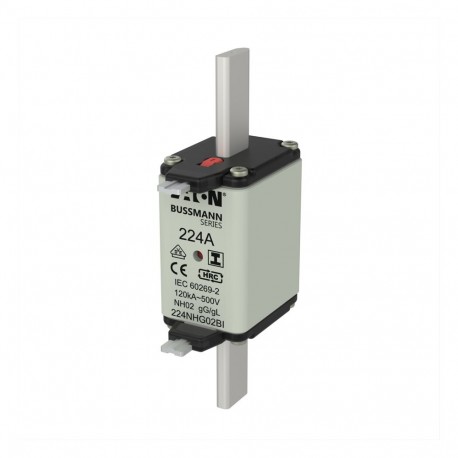

EATON - MOELLER NH FUSE 224A 500V GL/GG SIZE 02 NH FUSE 224A 500V GL/GG SIZE 02 224NHG02BI EATON ELECTRIC Fuse-link, LV, 224 A, AC 500 V, NH02, gL/gG, IEC, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 224A 500V GL/GG SIZE 02 224NHG02BI EATON ELECTRIC Fuse-link, LV, 224 A, AC 500 V, NH02, gL/gG, IEC, ..

NH FUSE 224A 500V GL/GG SIZE 02

224NHG02BI

224NHG02BI

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 224 A, AC 500 V, NH02, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 224A 500V GL/GG SIZE 02 Fuse, Fuse-link, low voltage, 224 A, AC 500 V, NH02, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Fuse-link NH FUSE 224A 500V GL/GG SIZE 02 by Eaton Moeller serves as a dependable industrial safety link integrated into electrical distribution panels to protect wiring infrastructure against overcurrent and short-circuit events. These devices ensure reliable operational safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH02
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 224 A
  • Rated voltage AC (EF007682): 500 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): Yes
  • Power loss at rated current (EF012389): 18 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
224NHG02BI
Model Code
NH FUSE 224A 500V GL/GG SIZE 02
EAN
5027590468510
Product Length/Depth
150 mm
Product Height
63 mm
Product Width
39 mm
Product Weight
442 g
Compliances
CE
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
224 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL

Product specification

Fuse size
NH3
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
SD3-D Single pole NH Fuse base
TD3-D Tripe pole NH Fuse base
Microswitch 170H0235
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
