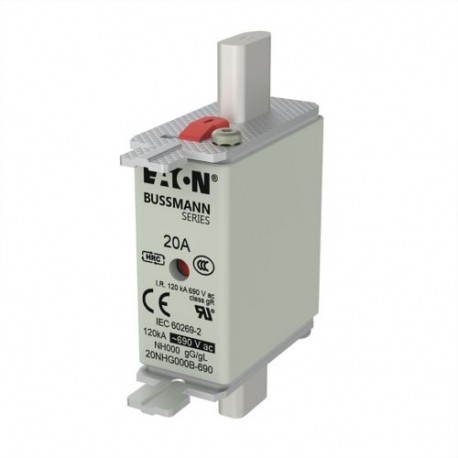

NH FUSE 20A 690V SIZE 000 GG MGL 20NHG000B-690 EATON ELECTRIC Fuse-link, high speed, 80 A, AC 690 V, size 00..
NH FUSE 20A 690V SIZE 000 GG MGL
20NHG000B690
20NHG000B-690
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Integrated into industrial power panels, the NH FUSE 20A 690V SIZE 000 GG MGL supplied by Eaton Moeller is an NH FUSE 20A 690V SIZE 000 GG MGL 20NHG000B-690 EATON ELECTRIC Fuse-link, high speed, 80 A, AC 690 V, size 00.. that provides reliable overcurrent protection for electrical distribution systems. Industrial fuses break fault currents rapidly to prevent thermal destruction of downstream cabling and sensitive automation hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH000
- Voltage type (EF000187): AC
- Rated current (EF000227): 20 A
- Rated voltage AC (EF007682): 690 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): No
- Power loss at rated current (EF012389): 2.5 W
More info
▲General specifications
CE Marked
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors
