NH FUSE 20AMP 690V aM SIZE 000 20NHM000B-690 EATON ELECTRIC Fuse-link, high speed, 125 A, AC 690 V, size 000..

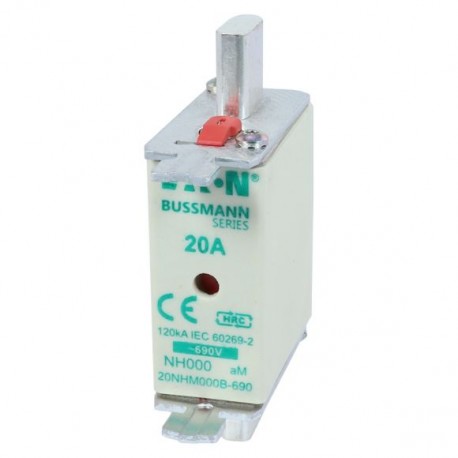

NH FUSE 20AMP 690V aM SIZE 000
20NHM000B690
20NHM000B-690
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Switchgear protection in automated electrical panels is frequently managed by high-speed cartridge elements like this Eaton Moeller NH FUSE 20AMP 690V aM SIZE 000. These parts are engineered to tolerate temporary inrush currents while instantly clearing sustained short circuits.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH000
- Voltage type (EF000187): AC
- Rated current (EF000227): 20 A
- Rated voltage AC (EF007682): 690 V
- Rated switching capacity AC (EF017698): 120 kA
- Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): No
- Power loss at rated current (EF012389): 0.9 W
More info
▲General specifications
CE Marked
IEC 60269-2
DIN 43620
Electrical data
Product specification
Accessories
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors
