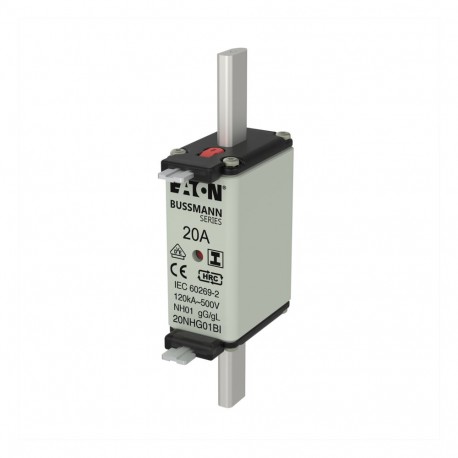

EATON - MOELLER NH FUSE 20A 500V GL/GG SIZE 01 NH FUSE 20A 500V GL/GG SIZE 01 20NHG01BI EATON ELECTRIC Fuse-link, LV, 20 A, AC 500 V, NH01, gL/gG, IEC, dua.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 20A 500V GL/GG SIZE 01 20NHG01BI EATON ELECTRIC Fuse-link, LV, 20 A, AC 500 V, NH01, gL/gG, IEC, dua..

NH FUSE 20A 500V GL/GG SIZE 01

20NHG01BI

20NHG01BI

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 20 A, AC 500 V, NH01, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 20A 500V GL/GG SIZE 01 Fuse, Fuse-link, low voltage, 20 A, AC 500 V, NH01, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
20NHG01BI
Model Code
NH FUSE 20A 500V GL/GG SIZE 01
EAN
5027590468176
Product Length/Depth
135 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
295 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Type
Fuse
Application
Amperage Rating
20 A
Fitted with:
Insulated metal gripping lugs
Fuse size
NH01
Current type
AC
Breaking capacity
120 kA
Rated switching capacity
120 kA
Rated voltage AC
500 V
Class
Class gG/gL
Fuse type
Square body with knife blade contact
Utilization category
gL/gG (cable protection/equipment protection)
Interrupt rating
120 kAIC
Fuse indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
Yes
Watt losses
3.4 W
Connection
Blade end
Construction
NH01
Construction size
NH01
Fuse shape
Square body
Knife blade contacts
Voltage type
AC
Suitable for
Microswitch 170H0235
Material
Ceramic body
Quantity
3
Voltage rating
500 V
Rated switching capacity AC
120 kA

ETIM for 20NHG01BI Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH01
Voltage type (EF000187) AC
Rated current (EF000227) 20 A
Rated voltage AC (EF007682) 500 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) Yes
Power loss at rated current (EF012389) 3.4 W

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
