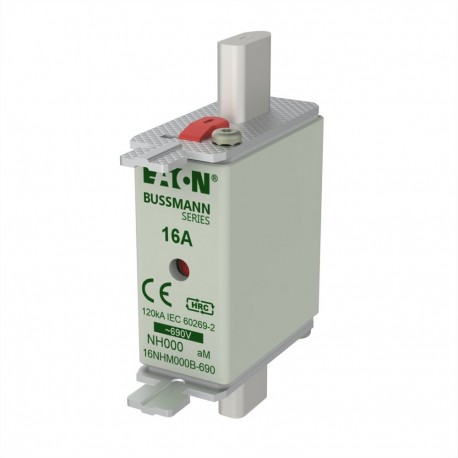

EATON - MOELLER NH FUSE 16AMP 690V aM SIZE 000 NH FUSE 16AMP 690V aM SIZE 000 16NHM000B-690 EATON ELECTRIC Fuse-link, high speed, 80 A, AC 690 V, size 000,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 16AMP 690V aM SIZE 000 16NHM000B-690 EATON ELECTRIC Fuse-link, high speed, 80 A, AC 690 V, size 000,..

NH FUSE 16AMP 690V aM SIZE 000

16NHM000B690

16NHM000B-690

EATON - MOELLER

3 Pcs.

Fuse-link, high speed, 80 A, AC 690 V, size 000, 24 x 36 x 96 mm, aR, IEC NH FUSE 16AMP 690V aM SIZE 000 Eaton Bussmann series low voltage NH Fuse, 690V, 16A, 120 kAIC, Combination fuse status indicator, fuse, Class aM Fuse, fuse-link, low voltage, 16 A, AC 690 V, NH000, aM, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
16NHM000B-690
EAN
5027590437813
UPC
051712240659
Product Length/Depth
79 mm
Product Height
51 mm
Product Width
21 mm
Product Weight
132 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
16 A
Voltage rating
690 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class aM
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH000
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
Microswitch 170H0236
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors

ETIM for 16NHM000B-690 Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH000
Voltage type (EF000187) AC
Rated current (EF000227) 16 A
Rated voltage AC (EF007682) 690 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) aM (switchgear protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No
Power loss at rated current (EF012389) 0.8 W
