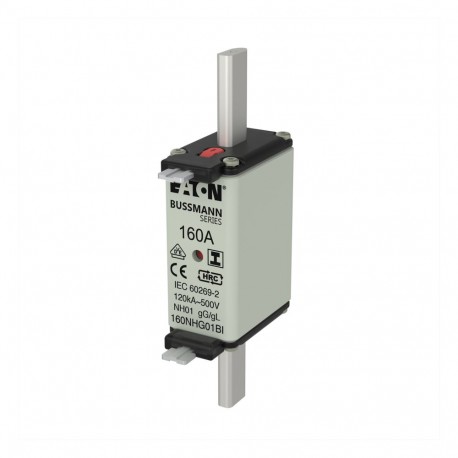

EATON - MOELLER NH FUSE 160A 500V GL/GG SIZE 01 NH FUSE 160A 500V GL/GG SIZE 01 160NHG01BI EATON ELECTRIC Fuse-link, LV, 160 A, AC 500 V, NH01, gL/gG, IEC, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 160A 500V GL/GG SIZE 01 160NHG01BI EATON ELECTRIC Fuse-link, LV, 160 A, AC 500 V, NH01, gL/gG, IEC, ..

NH FUSE 160A 500V GL/GG SIZE 01

160NHG01BI

160NHG01BI

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 160 A, AC 500 V, NH01, gL/gG, IEC, dual indicator, insulated gripping lugs NH FUSE 160A 500V GL/GG SIZE 01 Fuse, Fuse-link, low voltage, 160 A, AC 500 V, NH01, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A low-voltage fuse-link, specifically the Eaton Moeller NH FUSE 160A 500V GL/GG SIZE 01, provides dependable overload and short-circuit protection for industrial power distribution networks and machinery feeds. These industry-standard NH fuses are built for rapid installation and secure connection within fuse bases and switch disconnectors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH01
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 160 A
  • Rated voltage AC (EF007682): 500 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): Yes
  • Power loss at rated current (EF012389): 12.3 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
160NHG01BI
Model Code
NH FUSE 160A 500V GL/GG SIZE 01
EAN
5027590437288
Product Length/Depth
135 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
295 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
160 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH000
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
Microswitch 170H0236
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors
